Comfort‑efficient & Eco‑friendly

Targeting high‑end life‑science laboratories, clinical pathological analysis and cutting‑edge research applications, it redefines standards for high‑precision microscopic observation with outstanding optical performance, intelligent operation and modular expandability.

· The 100X objective uses water instead of oil for higher environmental friendliness, greater convenience and superior performance.

· Comfort‑efficient multi‑mode observation, intelligent low‑cost maintenance and eco‑friendly design.

Supports Multiple Observation Modes

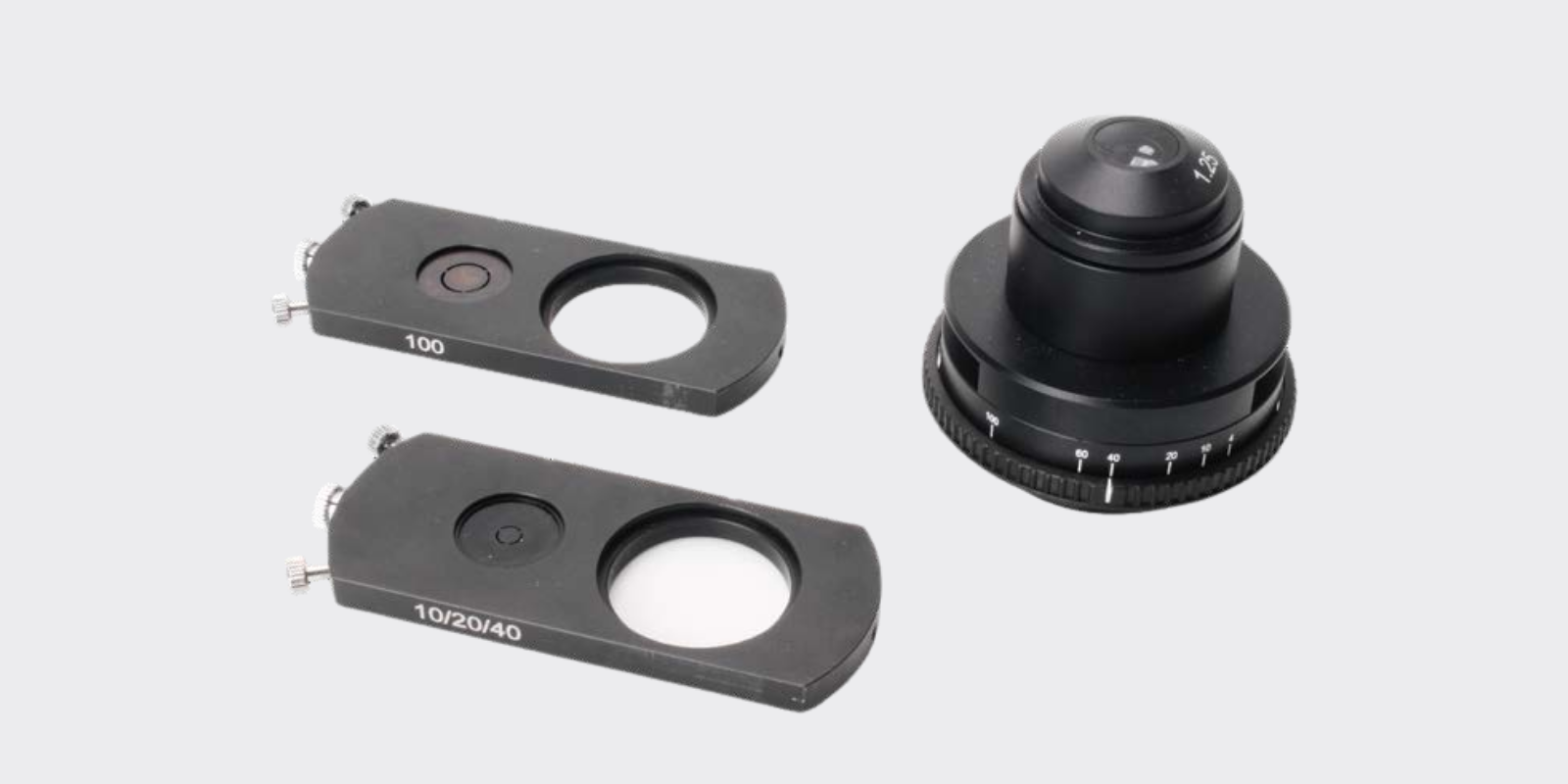

Multi‑function Universal Condenser

A universal condenser compatible with bright‑field, dark‑field and phase‑contrast is provided. Observation modes can be switched rapidly via dark‑field and phase‑contrast inserts. Phase‑contrast and bright‑field inserts are universally applicable for 4X‑100X objectives for simple and fast operation. Markings corresponding to objective magnifications are printed on the aperture diaphragm of the Abbe condenser to facilitate high‑resolution and high‑contrast imaging.

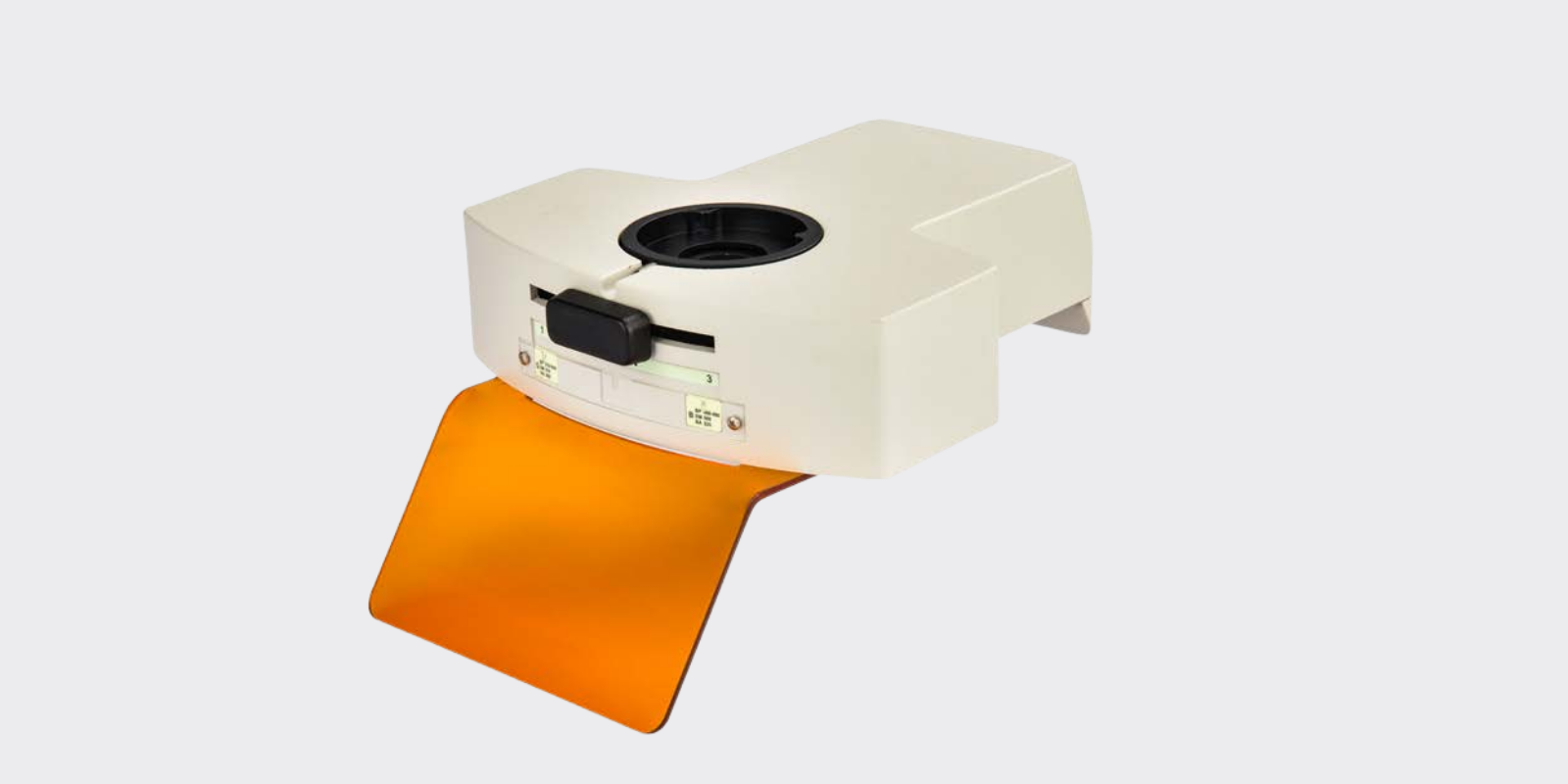

LED Fluorescence Illuminator

An epi‑illumination vertical illuminator with LED light source is available as an option. The LED light source features a long service life up to 5000 hours. As a cold‑light source, it causes minimal specimen damage with low heat generation for safer and more convenient operation. Equipped with two fluorescence channels, it boasts an elegant appearance and offers easier handling compared with conventional pull‑out fluorescence units.。

Superior Optical Imaging Design

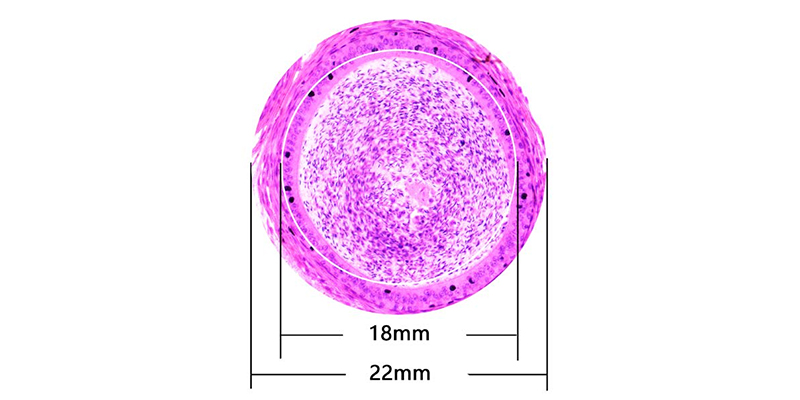

22 mm Wide Field‑of‑View

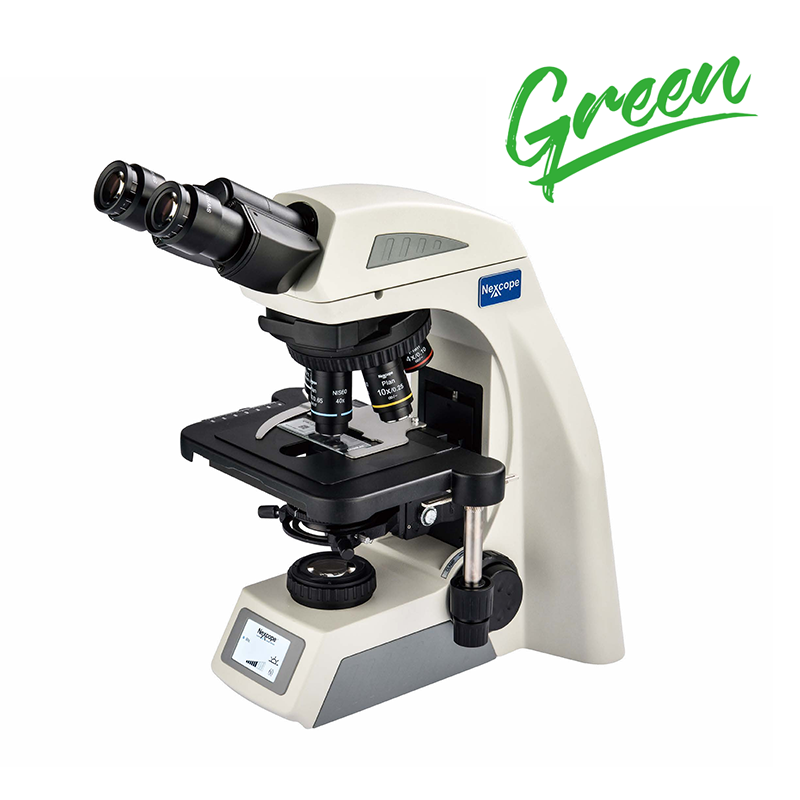

The GREEN microscope delivers a 22 mm wide field‑of‑view with 10X eyepieces for comprehensive and faster specimen viewing. The plan‑distortion‑free eyepieces eliminate blurred edges and stray‑light halos at the periphery of the field‑of‑view.

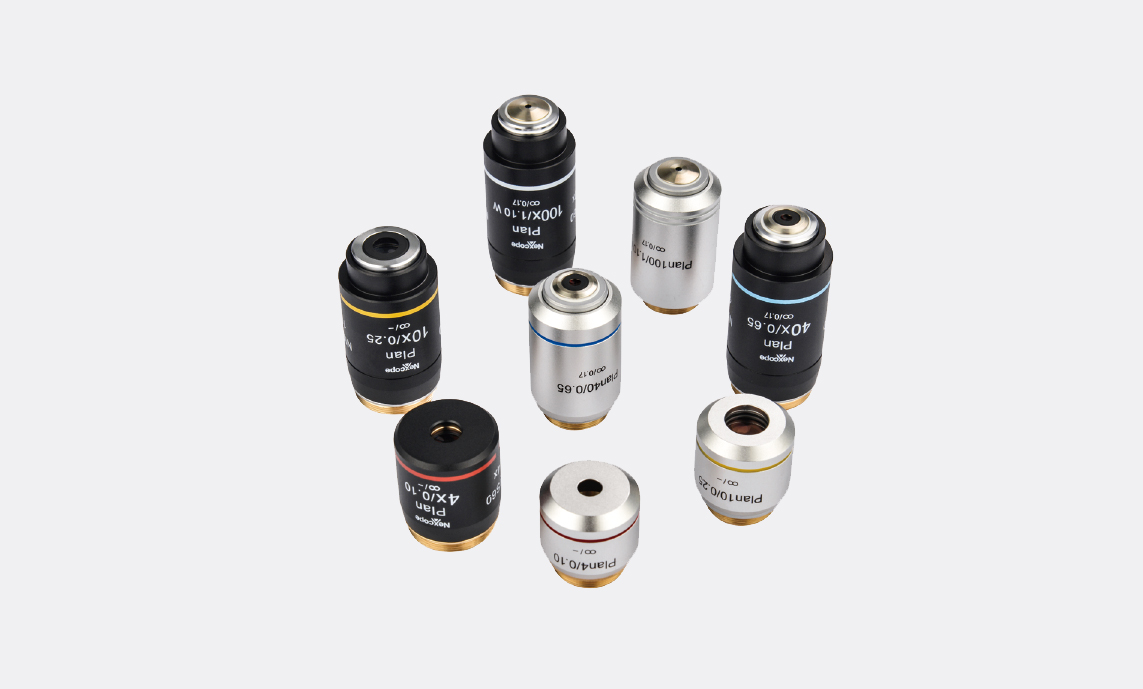

High‑performance & User‑friendly Objectives

Plan Objectives

Infinity‑corrected plan objectives deliver improved image flatness and superior fidelity for wide‑field observation.

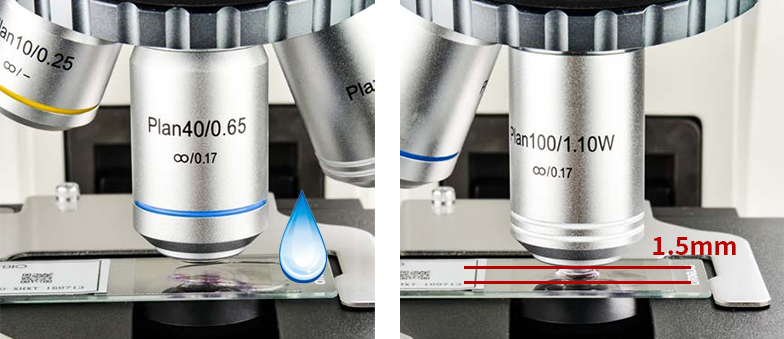

100X Water‑immersion Objective

Conventional 100X oil‑immersion objectives require cedar oil and organic‑solvent cleaning, which may cause air pollution and health risks. The water‑immersion objective uses water as the medium for safe and eco‑friendly operation, completely eliminating the above‑mentioned issues.

The 40X long‑working‑distance objective achieves a working distance of 1.5 mm. When switching with the 100X objective, it prevents residual cedar oil and water from corroding the 40X objective.

A Microscope Without Boundaries

Thanks to the multi‑functional digital head, users are no longer confined to the microscope unit or limited to indoor environments. Supported by mobile terminals and external portable power supplies, it enables mobile teaching and on‑site field observation. Objectives, eyepieces and observation tubes are treated with effective anti‑mildew coating to sustain consistent sharp imaging and extend service life, delivering stable performance even in hot‑humid conditions.

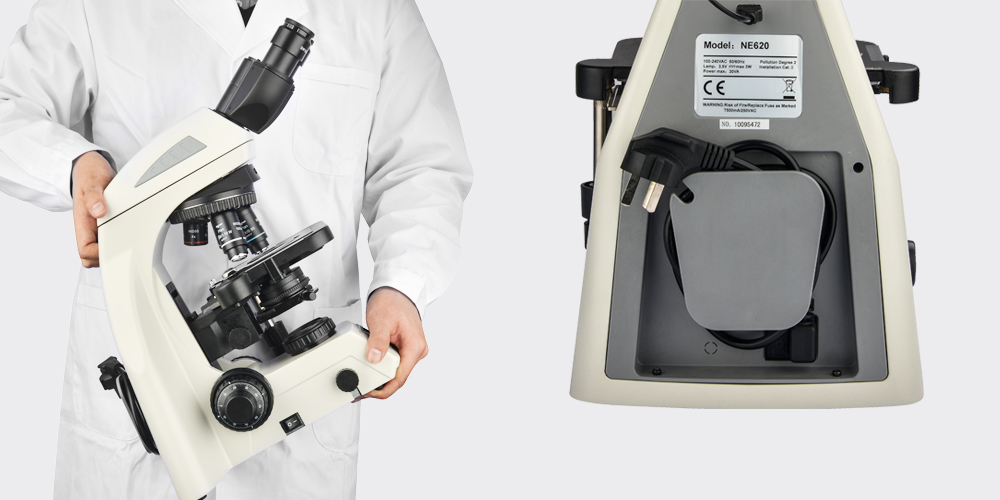

Simplified Storage, Transportation and Organization

Compact‑bodied, the microscope fits inside a standard classroom cabinet. Equipped with a dedicated carrying handle, it features light weight, excellent stability and robust construction. A cable‑management hub on the rear panel neatly tucks excess power cords to keep the laboratory tidy and prevent tripping hazards during transport. A wooden storage case is available as an optional accessory for convenient storage and transportation.

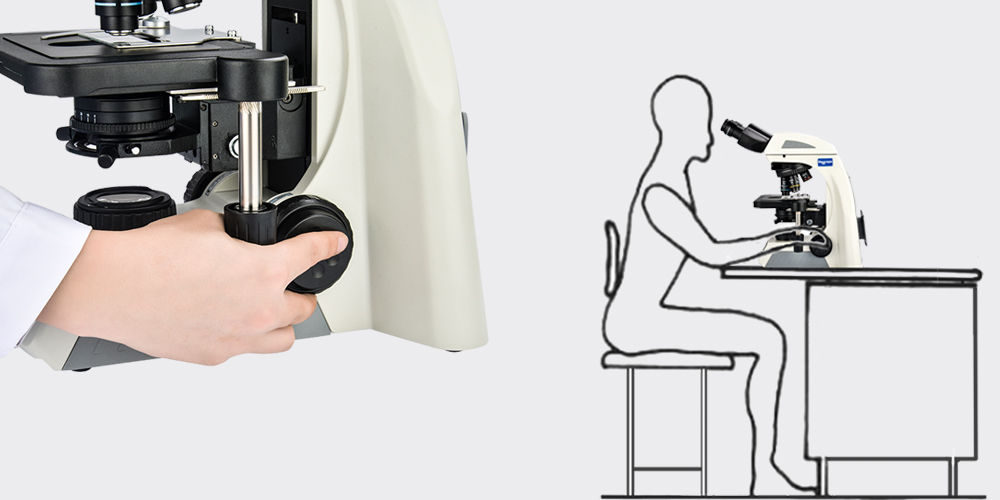

Ergonomic Design

Long‑hour microscope operation is common in daily scientific research, teaching and pathological diagnosis. Resulting operational fatigue often causes physical discomfort and reduces work efficiency and output. This microscope incorporates multiple ergonomic features including high‑eyepoint design, low‑hand‑position focusing mechanism and low‑position stage to ensure users can operate the microscope with maximum comfort. The focus knobs, illumination‑control knobs and stage handles are closely grouped. Users can keep both hands resting on the desktop during work with minimal hand movement for all operations.
