Modular Microscope Components

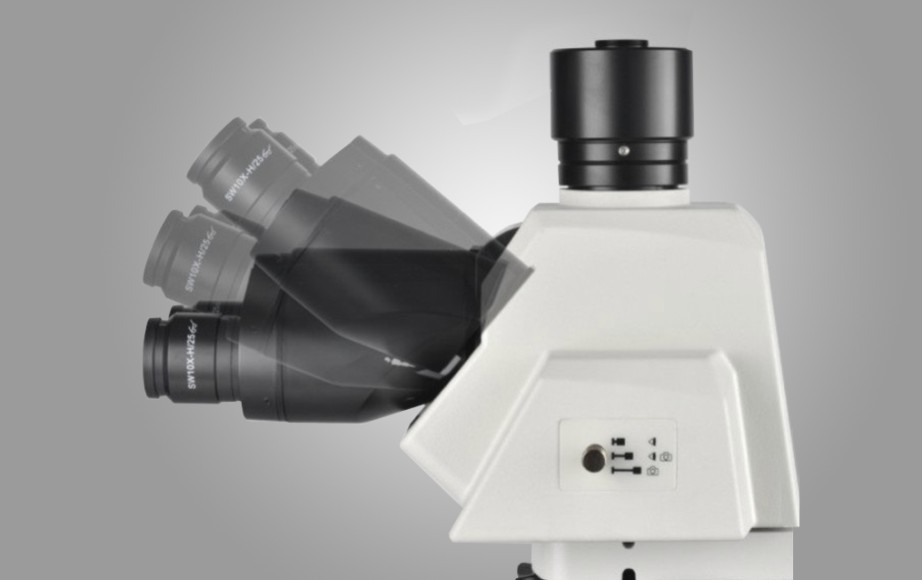

Observation Tubes

Core observation assemblies of the microscope. They connect the main optical unit to observation devices such as eyepieces and cameras for light‑path transmission, image redirection and comfortable human‑machine viewing.

Available options:

· Binocular observation tube
· Trinocular observation tube
· Ergonomic observation tube
· Erect‑image observation tube

Condensers

Precisely adjust beam aperture and illumination angle to enhance image brightness, uniformity and detail rendition. Indispensable key components for bright‑field, dark‑field, phase‑contrast, fluorescence and other observation modes.

Available options:

· Abbe condenser                              · Phase‑contrast condenser

· Achromatic condenser         · Dry dark‑field condenser
· Swing‑out achromatic condenser   · Oil‑immersion dark‑field condenser
· Long‑working‑distance condenser · Polarizing condenser
· Motorized condenser                  · ... ...

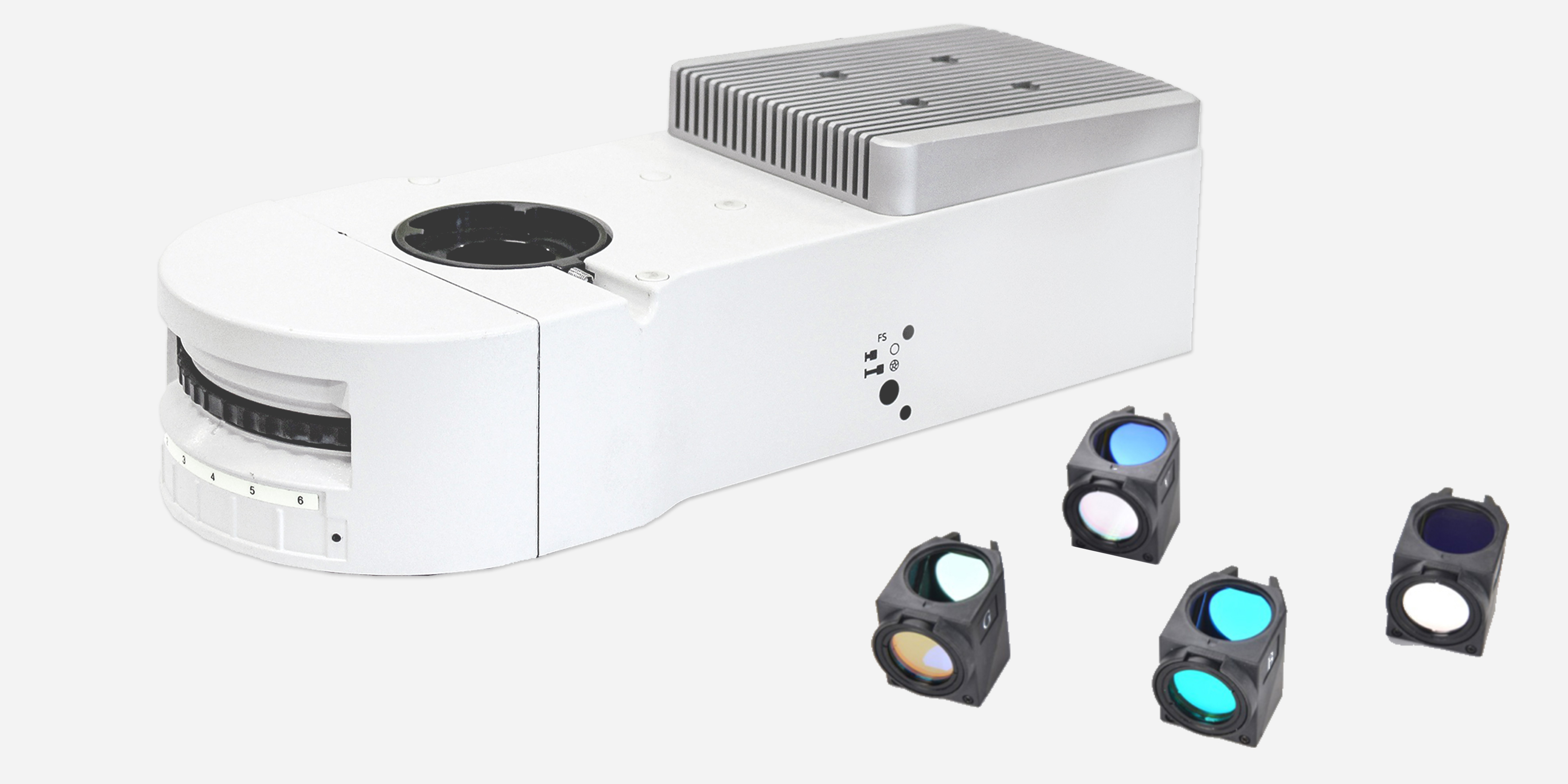

Fluorescence Vertical Illumination Module

 FL‑series fluorescence vertical illumination units for microscopes support up to 5‑channel fluorescence imaging with multiple module switching modes for easy operation. Multiple light‑source options are available, including mercury‑vapor lamp, LED and LED fiber‑optic light sources. Custom vertical fluorescence illumination units for various microscope models are also offered, covering full‑cycle services from design and prototyping to mass production.

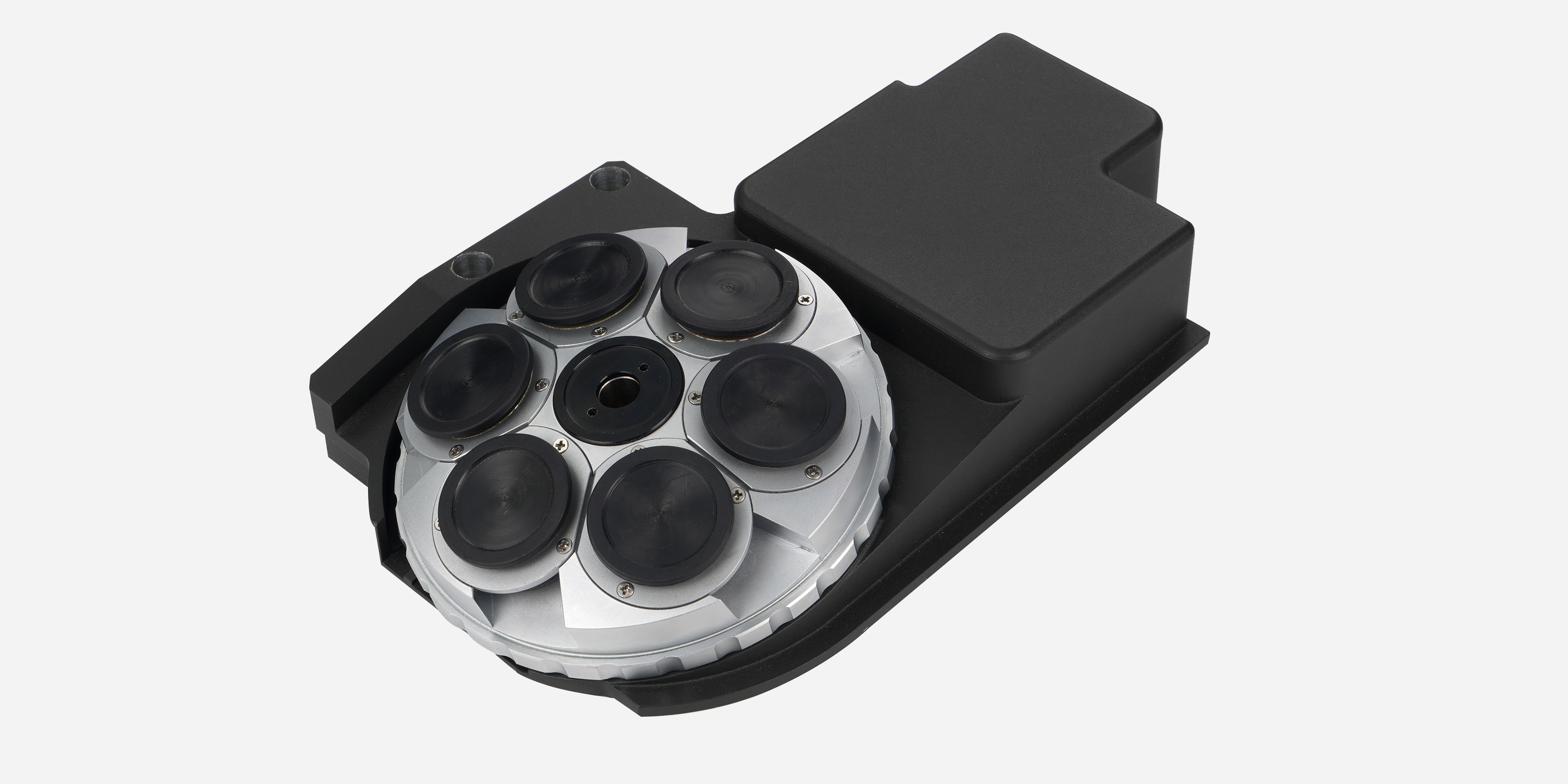

Objective Nosepiece

Designed for mounting multiple objectives simultaneously, it enables fast, precise and stable magnification switching without disassembly‑reinstallation, greatly improving observation efficiency and operation smoothness. Nosepieces of 4‑position, 5‑position and 6‑position are available, compatible with biological, inverted and industrial microscopes. Customization on interface size and positioning mode is supported to deliver efficient and reliable objective‑switching solutions for your microscopy system.

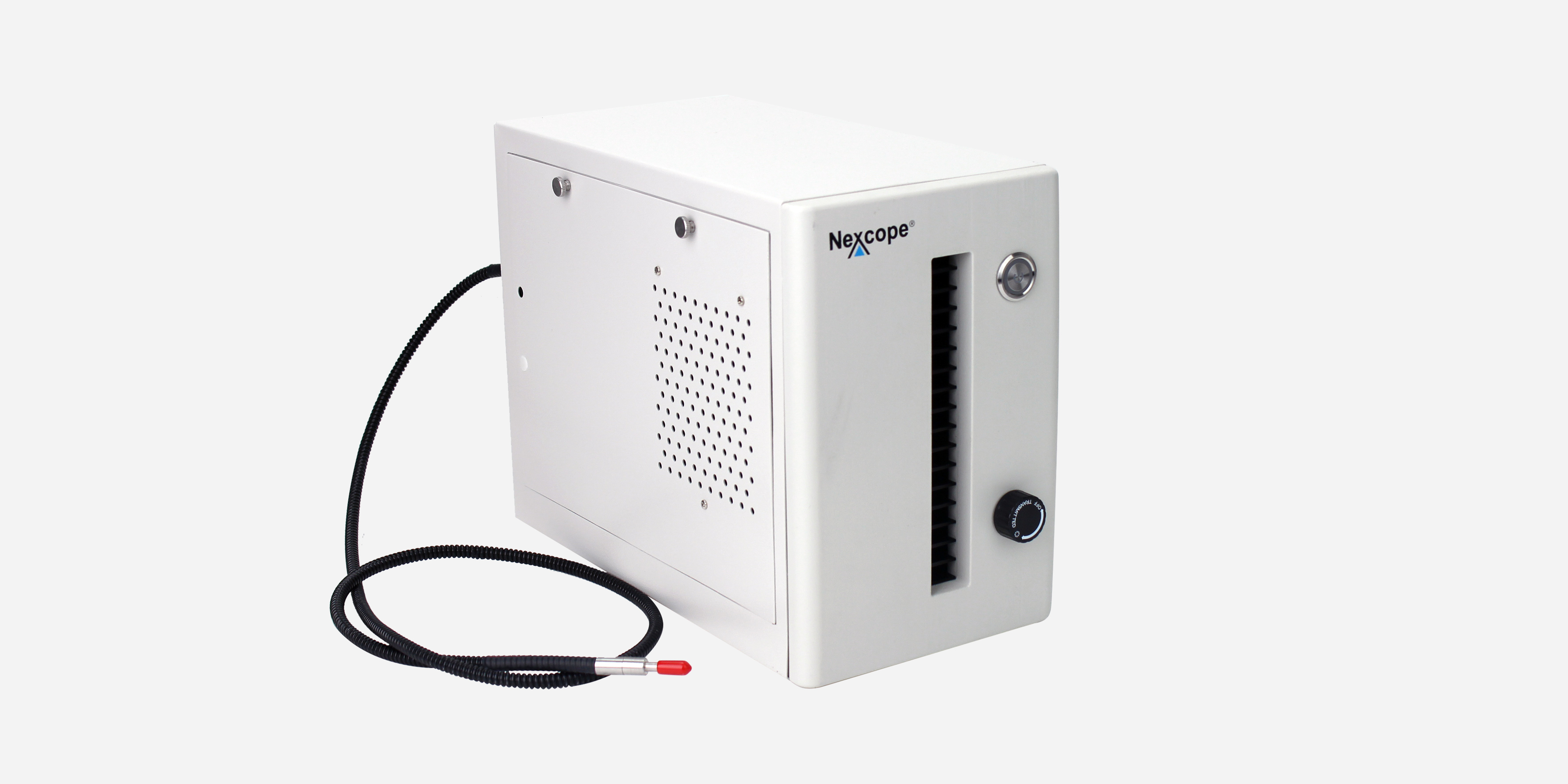

LED Fluorescence Light Source

LED 4 supports up to 4‑channel LED illumination. Well‑matched with commonly‑used fluorescent dyes, it delivers concentrated excitation energy and high brightness to satisfy routine experimental fluorescence imaging requirements. Ready‑to‑use with long service life and no bulb replacement needed. Compared with traditional mercury‑lamp fluorescence systems, it reduces photobleaching and phototoxicity, making it highly suitable for live‑cell samples. It is a sustainable, energy‑saving and eco‑friendly ideal light source for microscopes.
