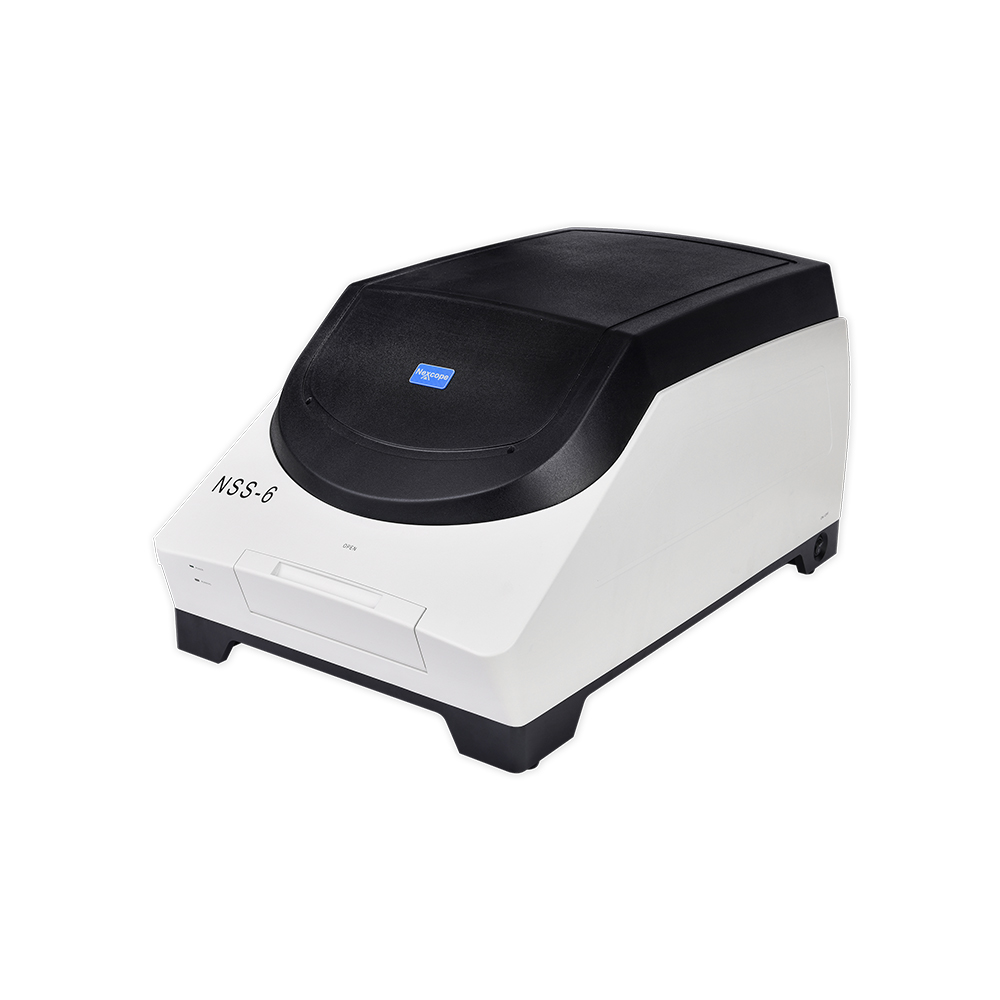

NSS‑6 Pathology Slide Scanner

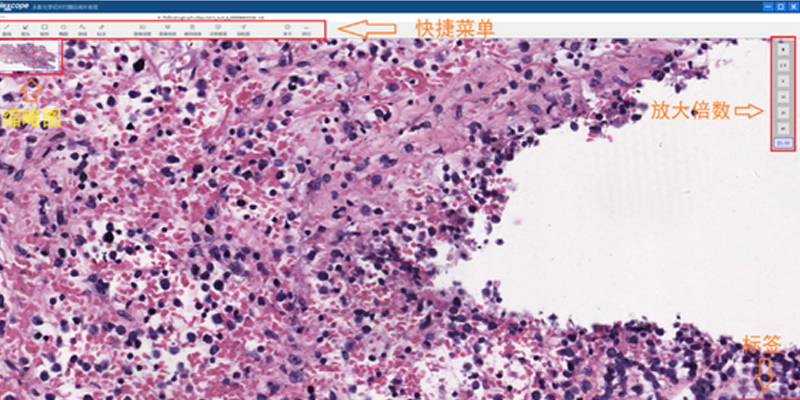

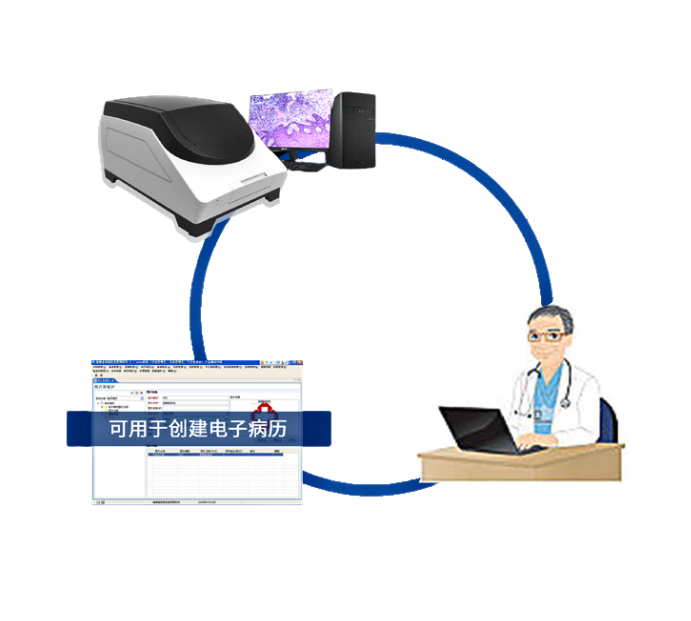

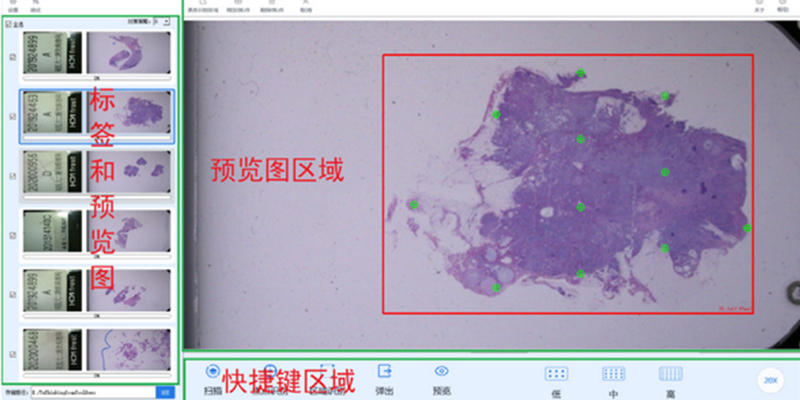

Adopting a fully‑automatic microscopic scanning system with supporting software, the NSS‑6 digitizes traditional glass slides and stitches images seamlessly into whole‑slide digital specimens. The system consists of an automatic slide‑loading unit, optical‑imaging module, scanning stage, control system and dedicated software. It performs high‑speed, high‑resolution panoramic scanning for glass slides. Professional viewing software supports zoom‑in/out, area measurement and annotation. Panoramic images can be transmitted and reviewed remotely via the internet. It revolutionizes conventional slide‑reading workflows and facilitates image‑based diagnosis, digital teaching and scientific research.

Overview

· High‑precision Scanning Slide Stage

Unique magnetic‑attraction slide holder ensures precise positioning of slides. It avoids repeated friction during loading and unloading, guarantees smooth mounting and prevents sections from dropping and damaging. Adopts imported maglev linear motor: running speed 3.2 m/s, acceleration 8g. High‑precision full‑closed‑loop drive control system: 50 nm motion resolution for X‑axis and Y‑axis, 50 nm motion resolution for Z‑axis. Repeat positioning accuracy of scanning slide stage ≤0.1 μm.

· High‑speed Scanning

Linear scanning technology equipped with a high‑speed line‑scan camera ensures high‑speed, high‑quality and stable scanning imaging. Supports high‑speed scanning at 20× and 40×. For 15 mm×15 mm tissue area, scanning time at 20× ≤40 seconds.

· Crisp, Bright and Uniform Imaging

Standard 20× Plan‑Apochromatic objective with N.A.=0.75. The high‑NA objective delivers high light throughput and improved resolution for sharper images. The illumination system adopts customized professional LED light source and fly‑eye lens technology to ensure ultra‑high light‑energy utilization and long‑lasting uniform illumination.
