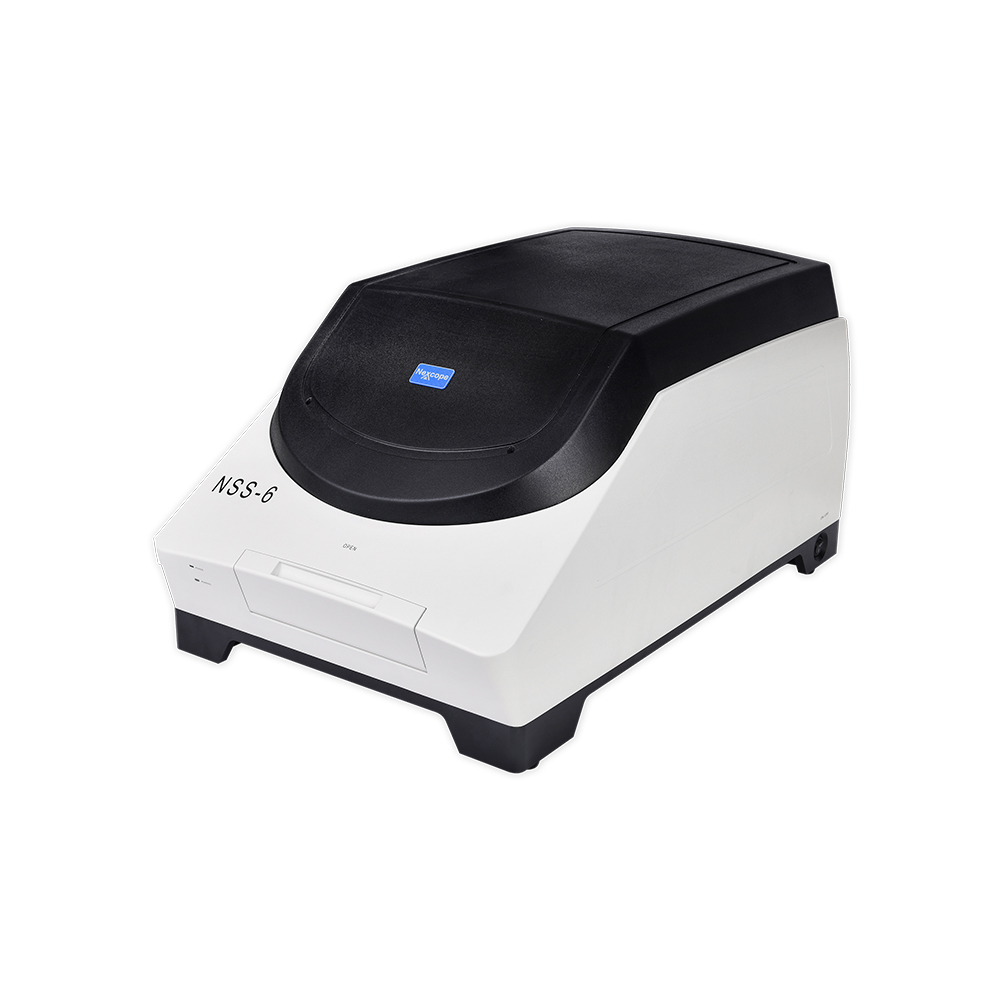

NSS‑6 Digital Slide Scanner

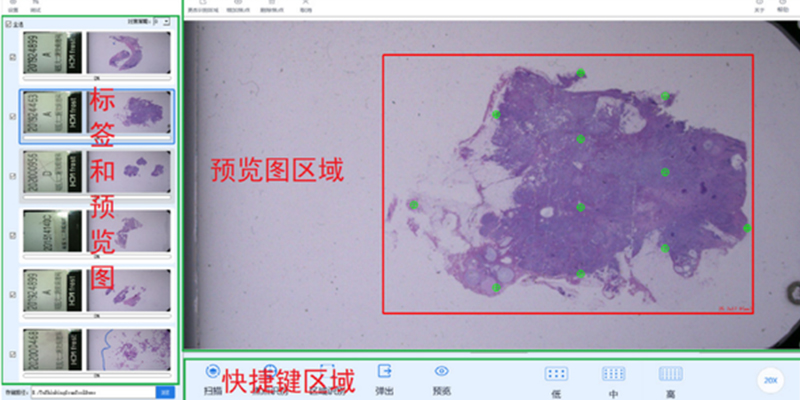

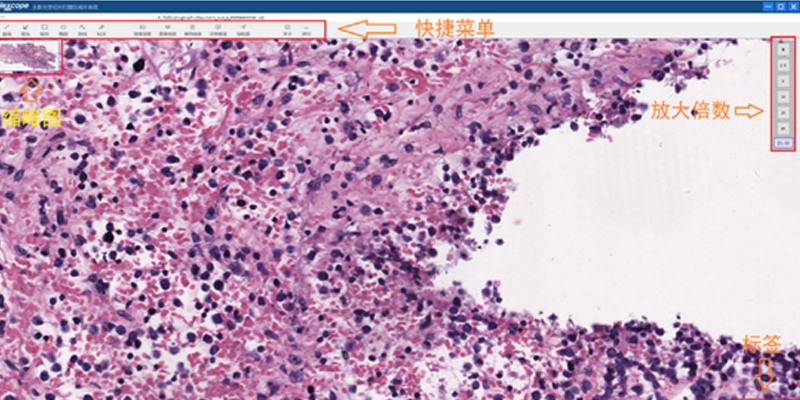

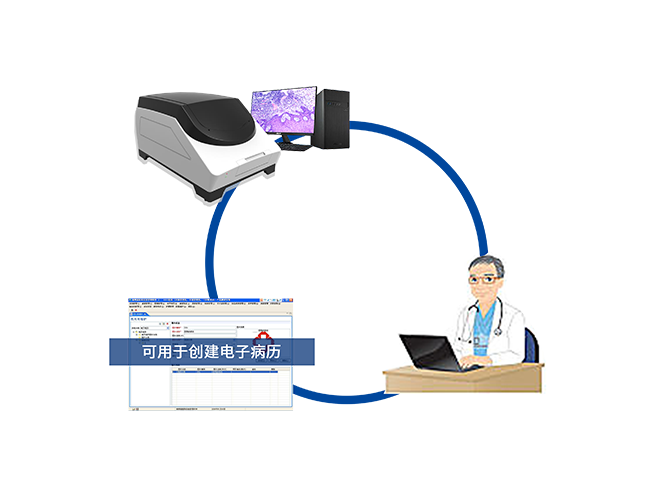

Equipped with a fully‑automatic microscopic scanning system and supporting software, the NSS‑6 digital slide scanner scans traditional glass slides and performs seamless stitching to generate whole‑slide digital images. It mainly consists of an automatic slide‑loading system, optical‑imaging system, scanning stage, control system and bundled software. High‑speed, high‑resolution whole‑image scanning can be completed for conventional glass slides. Professional viewing software supports image zoom‑in/zoom‑out, area measurement, annotation and other functions. Whole‑slide images can also be remotely transmitted and viewed over the internet. It transforms the traditional microscope‑based slide‑reading workflow and facilitates image‑aided diagnosis, digital teaching, scientific research and other applications.

Overview

· High‑precision Scanning Slide Stage

Adopting a unique magnetic‑attraction slide holder for precise positioning. It avoids repeated friction during loading‑unloading, ensures smooth sample mounting and prevents sections from falling and being damaged. Equipped with an imported maglev linear motor: running speed 3.2 m/s, acceleration 8g. High‑precision, fully closed-loop drive control system: 50 nm motion resolution on both the X‑Y and Z axes. Repeat positioning accuracy of scanning slide stage ≤0.1 μm.

· High‑speed Scanning

Linear scanning technology paired with a high‑speed line‑scan camera delivers high‑speed, high‑quality and stable scanning imaging. Supports high‑speed scanning at 20× and 40× magnification. For a 15 mm×15 mm tissue area, scanning time ≤40 seconds under 20×.

· Crisp, Bright and Uniform Imaging

Standard 20× Plan‑Apochromatic objective lens with N.A.=0.75. High‑NA objective provides high light throughput and improved resolution for sharper images. The illumination system adopts customized professional LED light source and fly‑eye lens technology to achieve high light‑energy utilization and long‑term uniform illumination.
