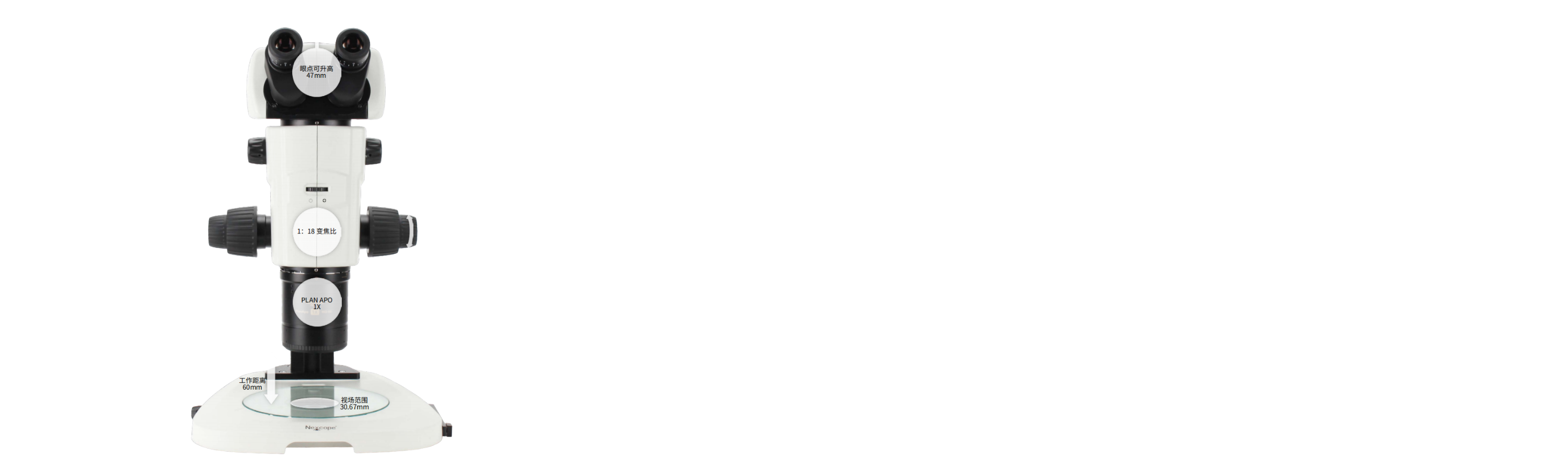

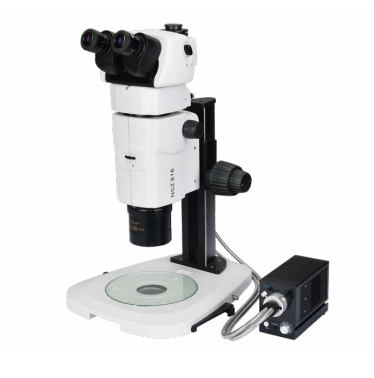

NSZ818 Stereo Microscope

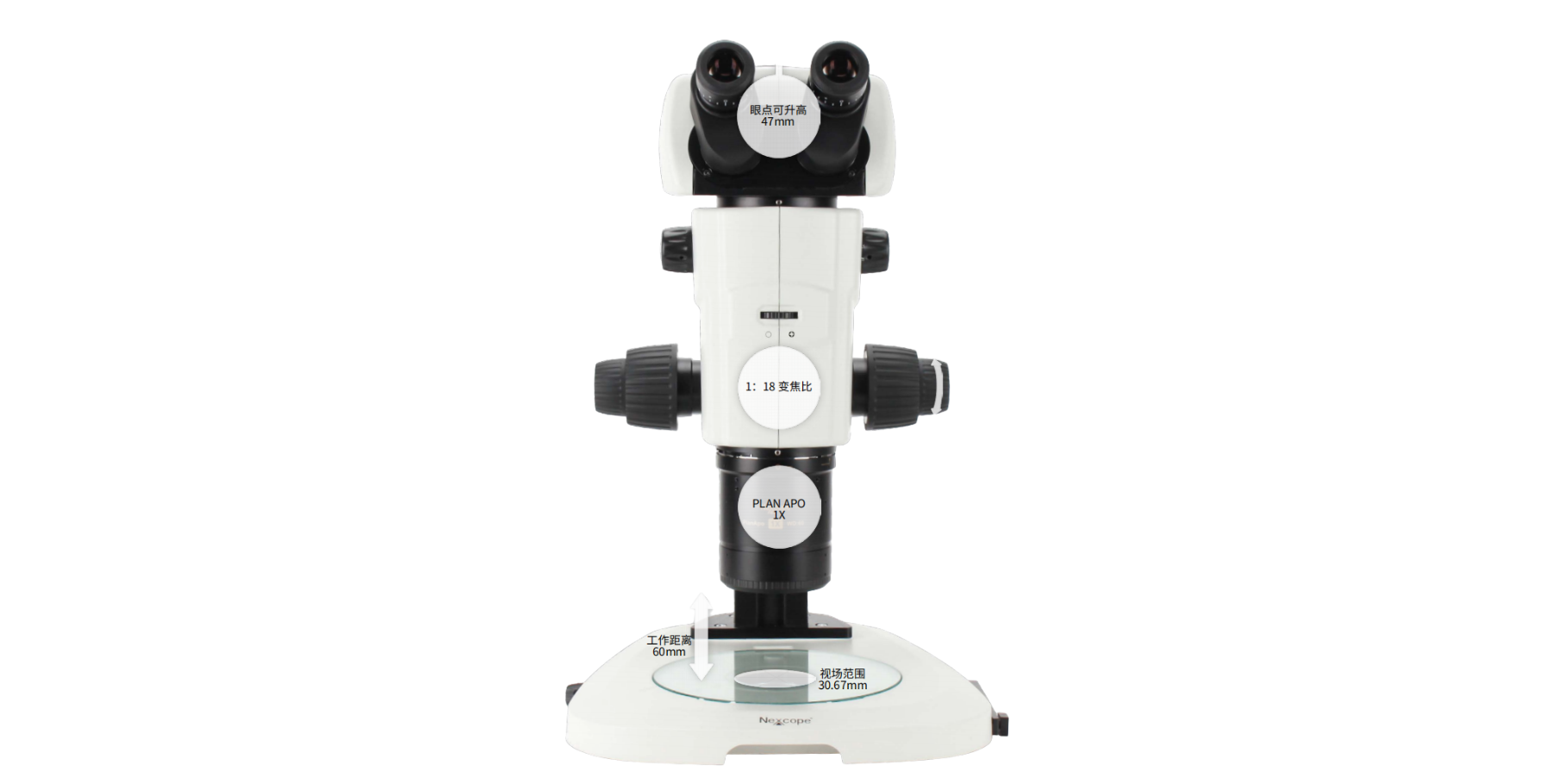

The Nexcope NSZ818 research‑grade parallel‑light stereo microscope features a zoom ratio of 1:18. Its high‑numerical‑aperture (NA) optics deliver outstanding image clarity, while the parallel optical system greatly enhances the system’s flexibility and versatility. With multiple structural upgrades and an ergonomic design, it provides an excellent user‑experience. This stereo microscope offers high‑performance imaging solutions for cutting‑edge life‑science research and industrial metrology applications.

Overview

Seamless Connection from Macro to Micro

Research-Grade Apochromatic Parallel-Light Stereo Microscope

1:18 zoom ratio. High NA delivers excellent image clarity. Parallel optical system improves flexibility and applicability. Structural refinements and ergonomic design deliver superior UX. Premium imaging for life-science research and industrial measurement.

Seamless Connection from Macro to Micro

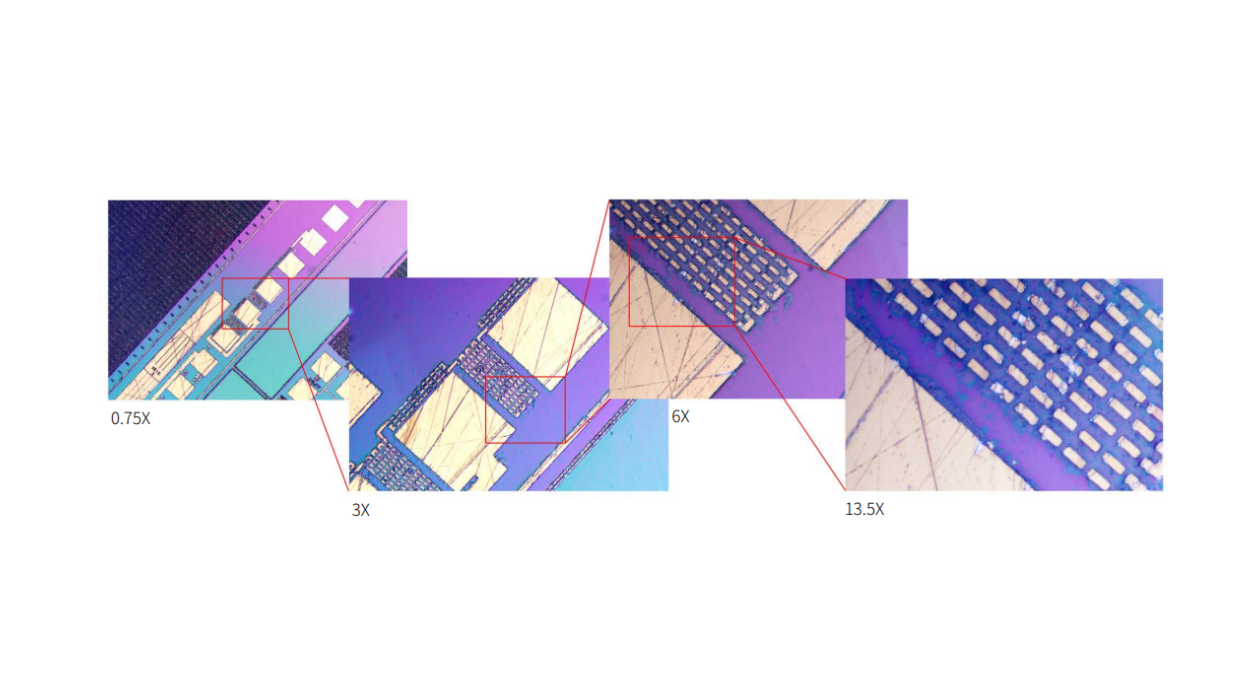

High Zoom Ratio

0.75×–13.5× zoom objective, 1:18 ratio. Observe whole specimen and fine detail without objective swap.

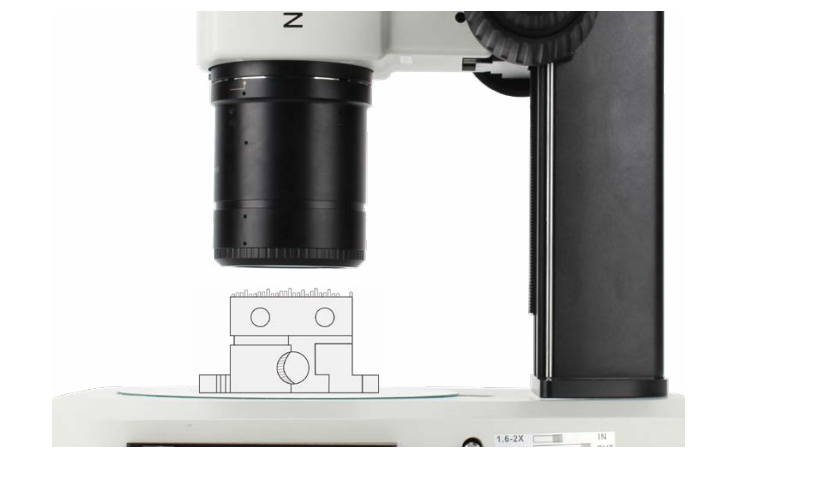

60 mm Working Distance

Tall, thick, irregular industrial samples (e.g., circuit boards) — 60 mm WD increases sample-to-lens distance vs. conventional microscopes, reducing collision risk and protecting both instrument and sample.

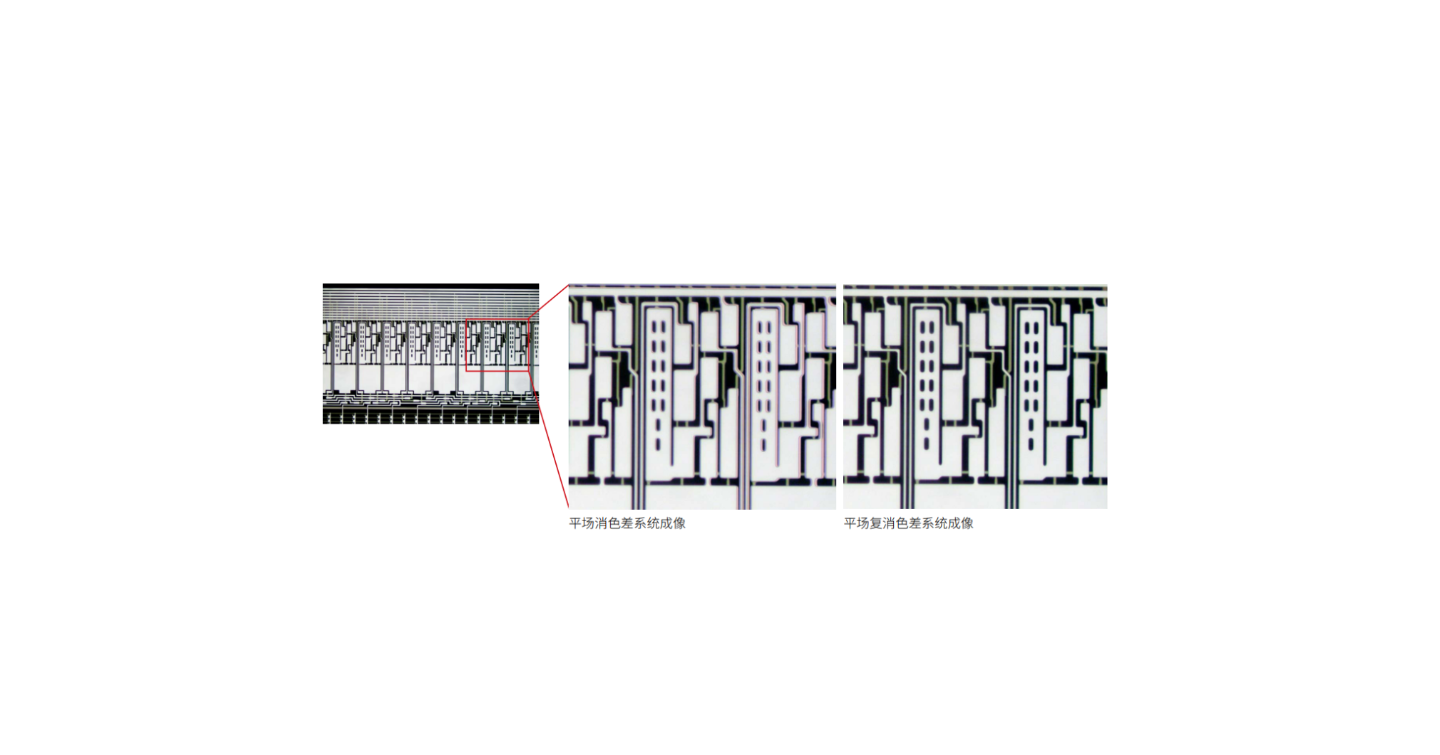

Plan-Apochromatic Objective

Newly designed 1× PLAN APO objective. Excellent resolution and chromatic aberration correction. High NA, resolution up to 1000 LP/mm.

Create Comfortable & Efficient Workflow

You can control multiple motorized components of the microscope via the control box, including focusing, zooming and light‑intensity adjustment. This research‑grade stereo microscope enables fast and simple operation to greatly improve your work efficiency. Built upon superior optical performance and sophisticated ergonomic design, it incorporates multiple convenient and user‑centric features for more comfortable and effortless microscopic observation.

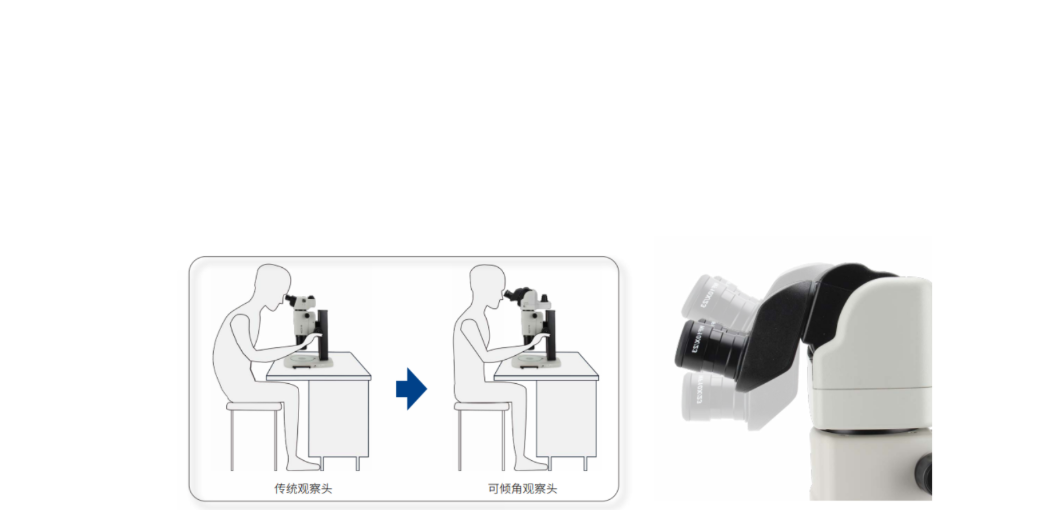

Tilting Observation Head

The trinocular observation head supports adjustable interpupillary distance and diopter. The eye‑base height can be raised by 47 mm.

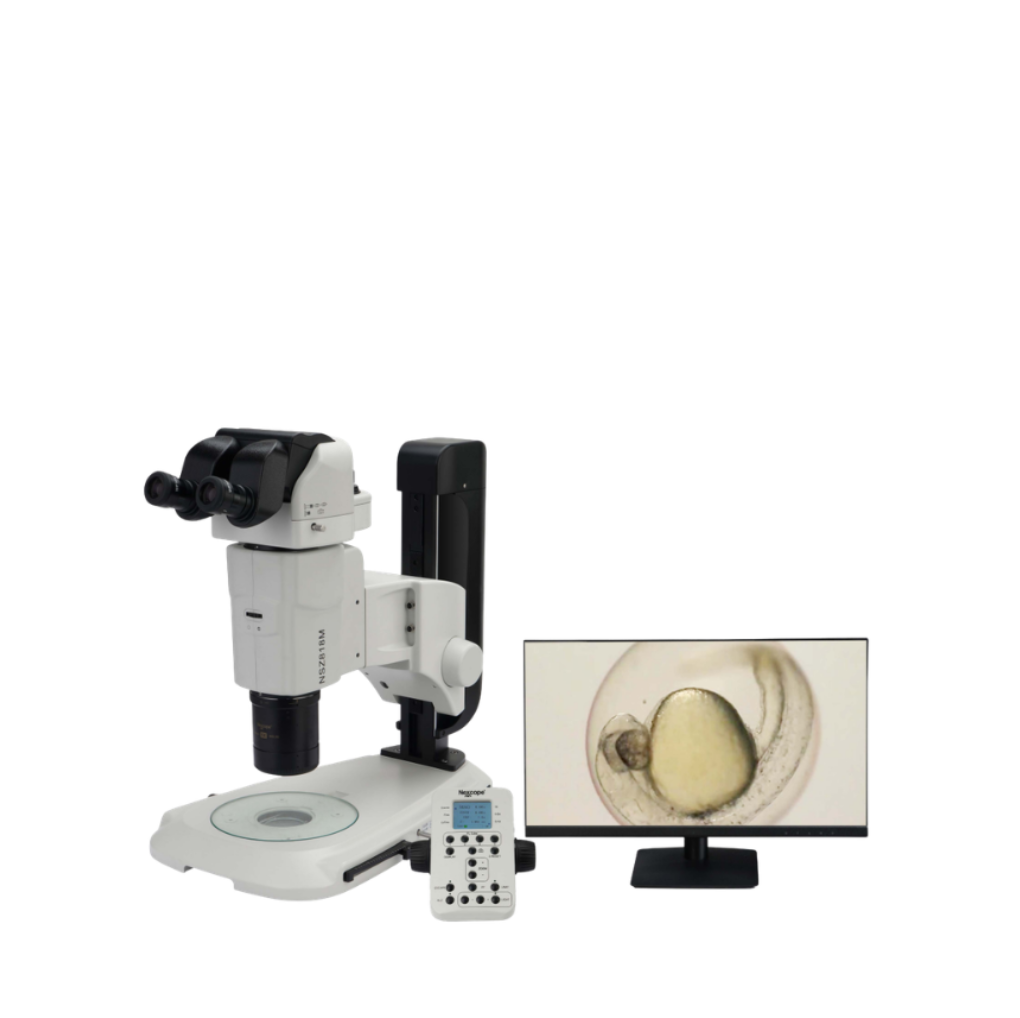

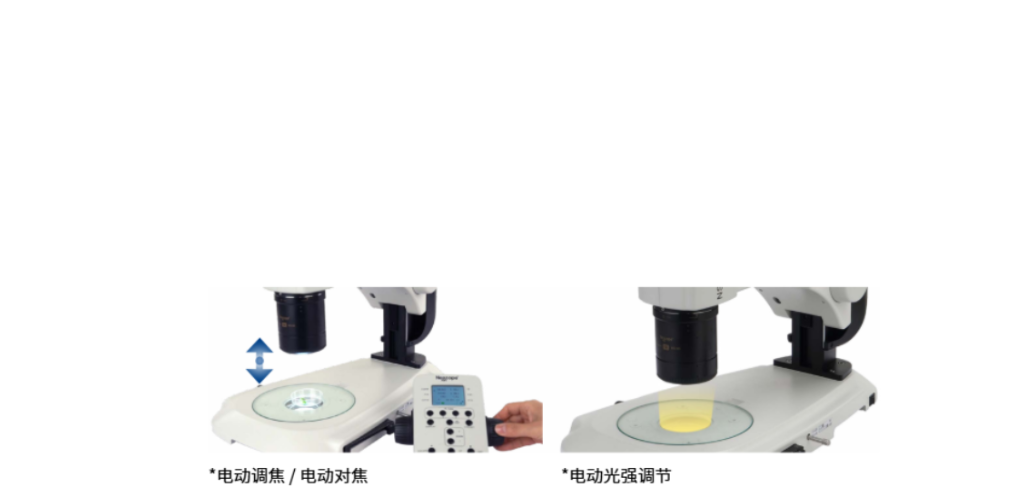

Convenient Motorized Control Functions

Featuring Z‑axis focusing, magnification switching, light intensity control and LCD information display.

Supports Diverse Function Expansion

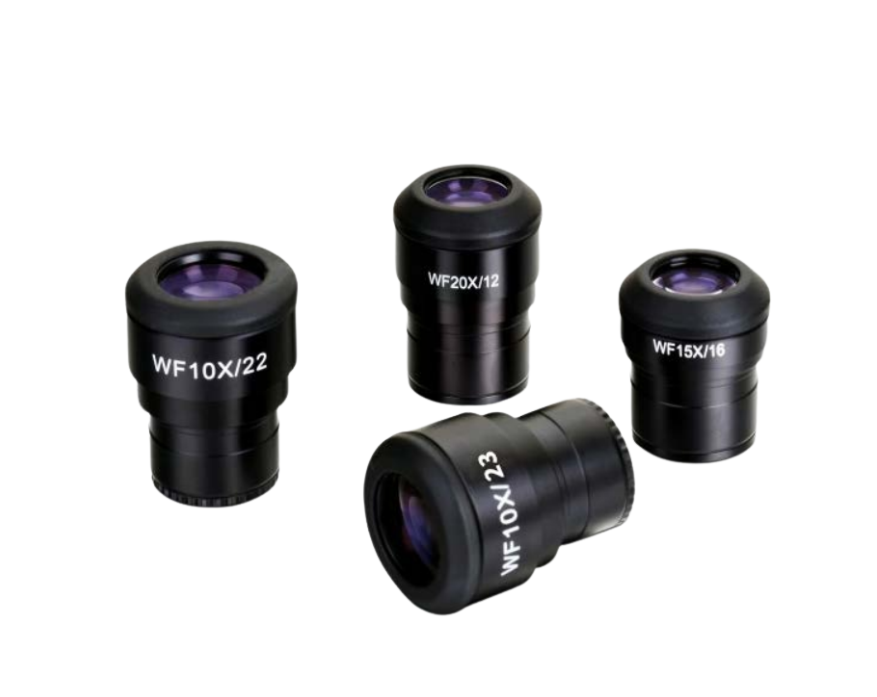

Eyepieces

Multiple‑magnification eyepieces are available. All eyepieces feature diopter adjustment, ensuring sharp eyepiece imaging for all users.

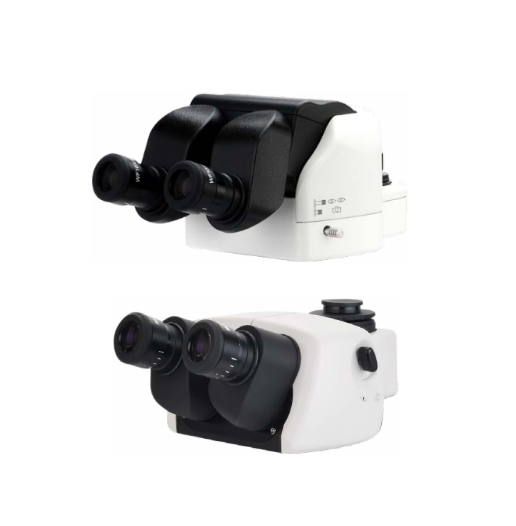

Observation Heads

Two ergonomic observation heads are available. The standard head features adjustable interpupillary distance, while the tilting observation head offers a tilt range of 0‑30°. Both heads support camera connection via C‑mount interface for digital observation.

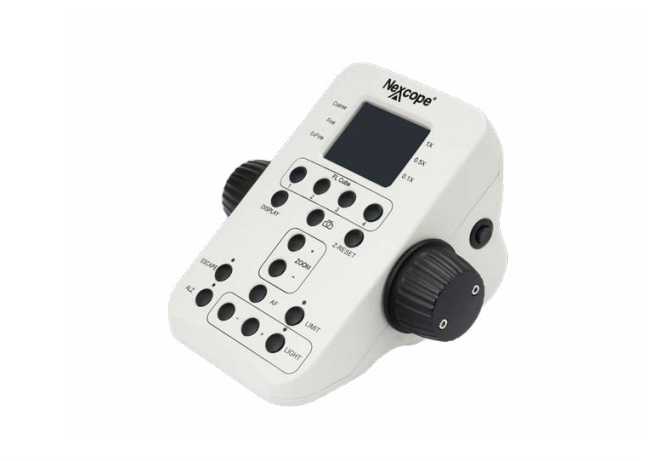

Motorized Control Components

Delivers multiple motorized control functions. The LCD screen displays microscope information for intuitive operation. Human‑oriented settings accommodate the usage habits of different operators.

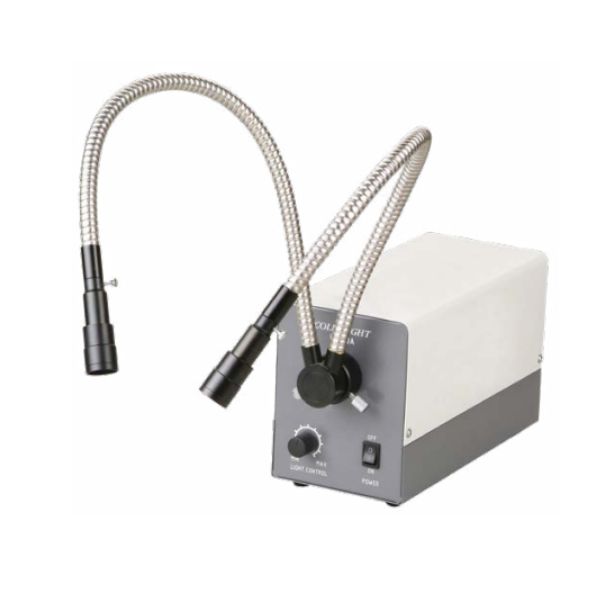

Fiber-Optic Illuminator

Flexible dual-arm fiber — adjust direction and angle for optimal contrast.

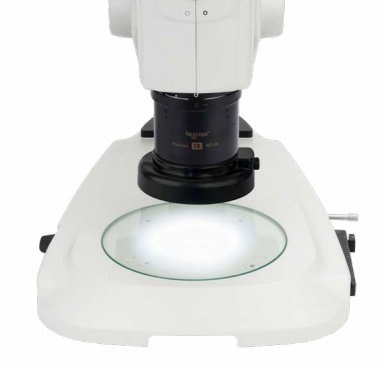

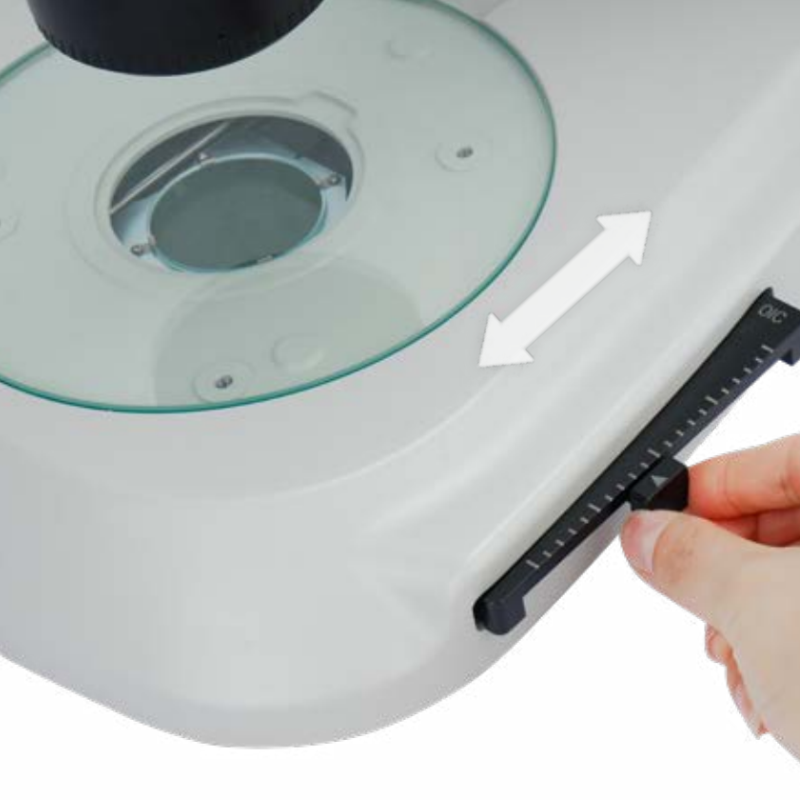

OIC Illumination

Base-mounted OIC unit. Slide the side lever to switch from bottom to oblique illumination, enhancing contrast of colorless, transparent samples.

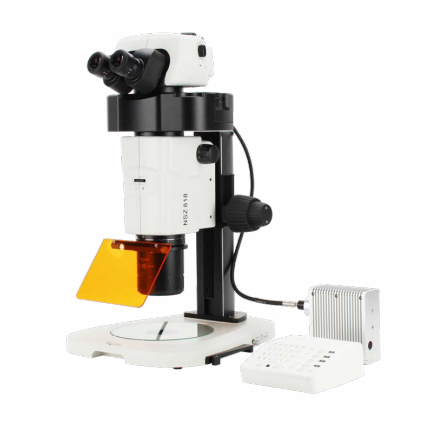

Epi-Fluorescence Module

Long-life, high-brightness LED fluorescence. Fly-eye lens ensures uniform illumination even at low magnification. High-transmission, high-cutoff-depth, steep-edge filters deliver excellent SNR and clear fluorescence images.

Coaxial Illumination Module
More uniform than conventional sources. Ideal for highly scattering or thick, textured samples — stronger contrast and clarity.

Ring LED Illuminator
High-brightness LED, 10,000-hour life, adjustable intensity. Cost-effective. Suits edge inspection and fine surface-defect detection.
