Motorized Stage

Only one USB cable is needed to connect the computer and the built‑in controller for integrated motor control. The built‑in Z‑axis adopts a high‑precision motor‑screw structure to achieve nanoscale Z‑stack scanning. Extruded imported lead‑screws improve motion consistency and eliminate backlash errors. Flexible stage‑control software meets various motion‑control requirements. The matched control joystick is powerful and easy‑to‑operate.

Overview

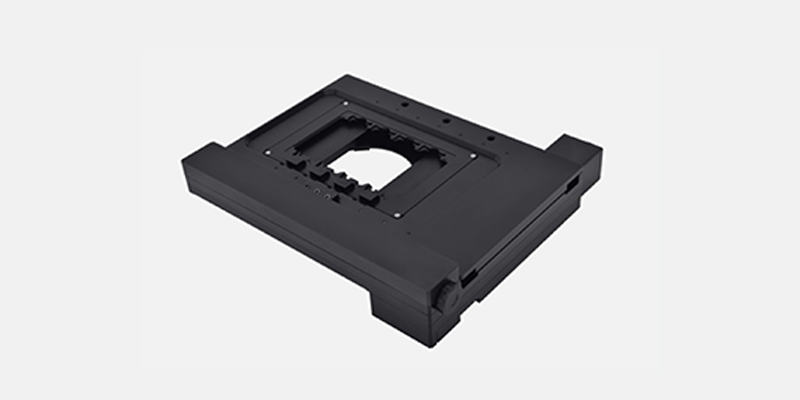

PT11 Motorized 3‑Axis Stage
Travel	X‑axis:120mm,Y‑axis:70mm,Z‑axis:30mm
X/Y‑axis Minimum Step Size	0.1um
Z‑axis Minimum Step Size	0.01um
X/Y‑axis Relative Repeatability	3um
Z‑axis Relative Repeatability	0.2 um
X/Y‑axis Maximum Stable Velocity	20mm/s
Z‑axis Maximum Stable Velocity	2.4mm/s
Control Method	3‑axis joystick with four‑speed adjustable gears

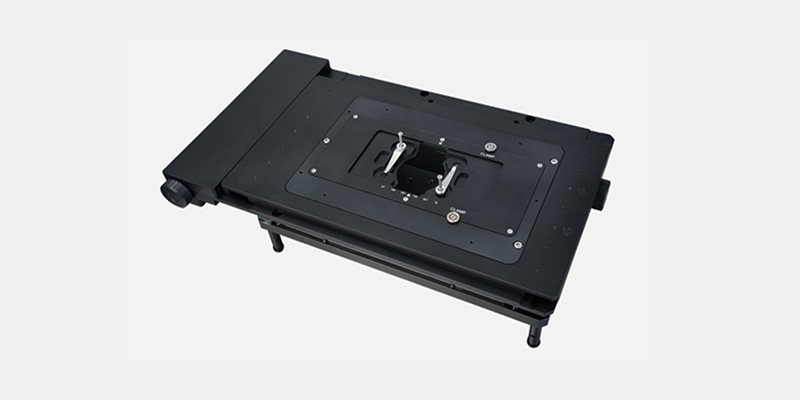

PT13 Motorized Stage
Travel	X‑axis:130mm,Y‑axis:100mm,Z‑axis:9mm
X/Y‑axis Minimum Step Size	0.1um
Z‑axis Minimum Step Size	0.01um
X/Y‑axis Relative Repeatability	3um
Z‑axis Relative Repeatability	0.2 um
X/Y‑axis Maximum Stable Velocity	20mm/s
Z‑axis Maximum Stable Velocity	6mm/s
Control Method	3‑axis joystick with four‑speed adjustable gears

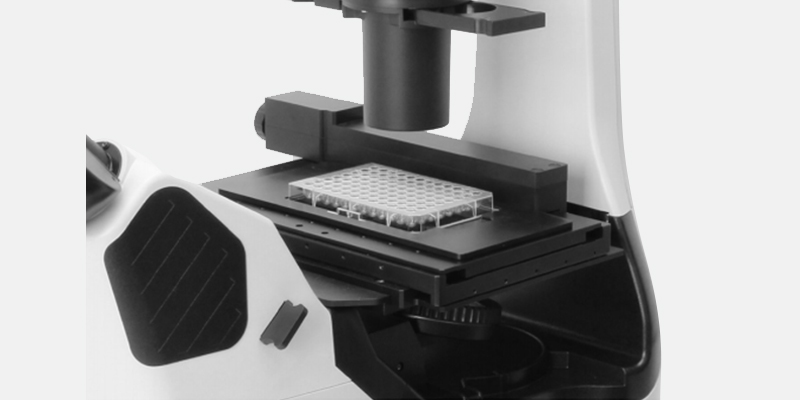

PT14 Motorized Stage
Travel	X‑axis:105mm,Y‑axis:60mm,Z‑axis:13mm
X/Y‑axis Minimum Step Size	0.1um
Z‑axis Minimum Step Size	0.01um
X/Y‑axis Relative Repeatability	5um
Z‑axis Relative Repeatability	0.5um
X/Y‑axis Maximum Stable Velocity	25mm/s
Z‑axis Maximum Stable Velocity	6mm/s
Control Method	3‑axis joystick with four‑speed adjustable gears

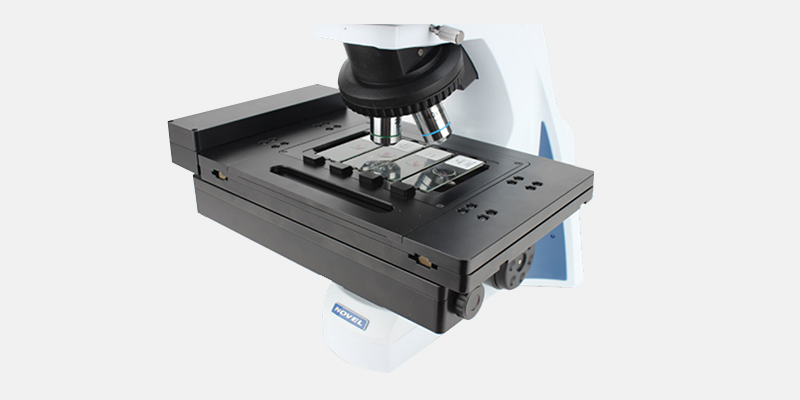

PT18 Motorized Stage
Travel	X‑axis:120mm,Y‑axis:70mm,Z‑axis:10mm
X/Y‑axis Minimum Step Size	0.1um
Z‑axis Minimum Step Size	0.01um
X/Y‑axis Relative Repeatability	3um
Z‑axis Relative Repeatability	0.2um
X/Y‑axis Maximum Stable Velocity	20mm/s
Z‑axis Maximum Stable Velocity	6mm/s
Control Method	3‑axis joystick with four‑speed adjustable gears
