NX2000 Industrial‑Inspection Microscope

The NX2000 is ideal for large‑area industrial specimen observation. It enables fast sample positioning, with easily‑swappable stage inserts adaptable to samples of various types and sizes. Modular design supports Brightfield, Darkfield, DIC and Polarization observation modes. Multi‑motorized and ergonomic controls deliver intelligent, straightforward inspection.

Overview

Fast Positioning & Imaging for Extra‑large Samples

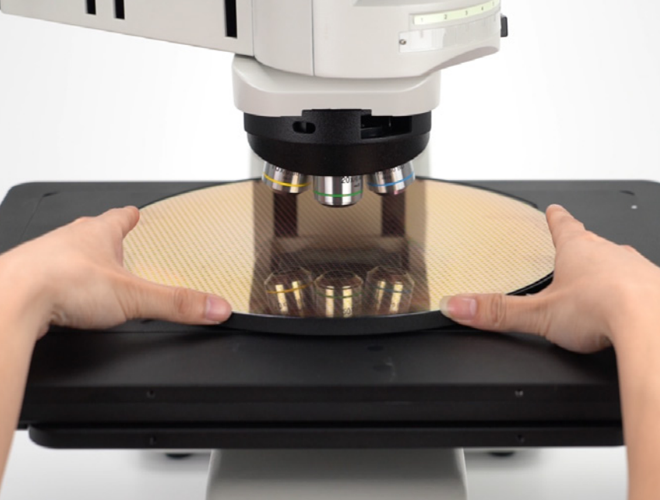

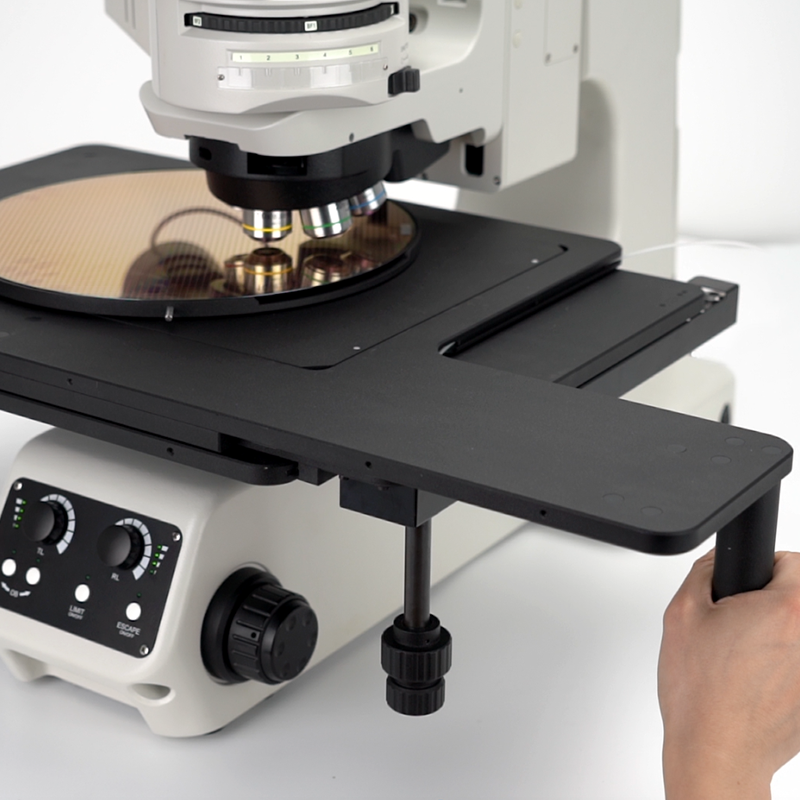

Extra-Large Sample Space

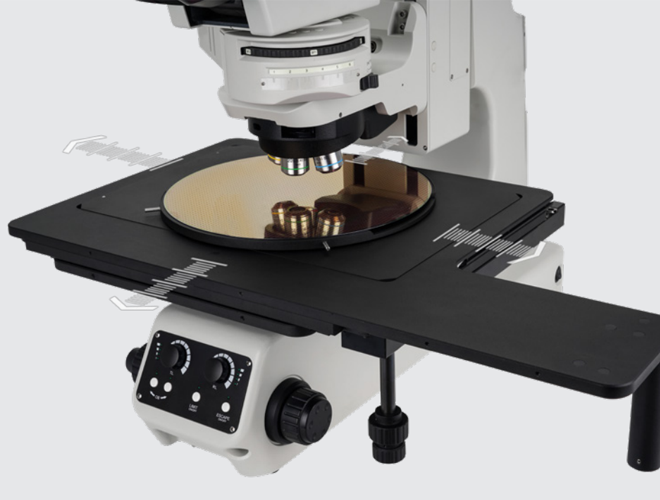

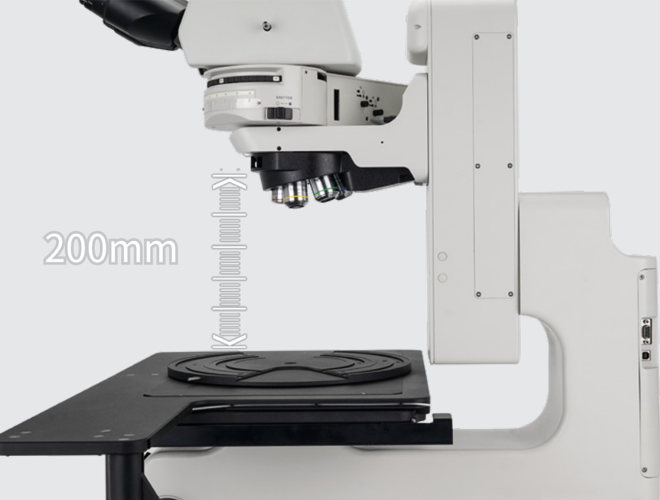

Oversized stage and travel. For precision observation of 12-inch / 300 mm-diameter specimens. Up to 200 mm Z-axis travel. Fine-adjust handle and clutch-equipped move handle for fast large-area positioning.

Intelligent Variable-Speed Focus
When switching between samples of differing heights, NX2000 intelligently adjusts nosepiece focus speed based on focus-knob rotation speed and distance — faster, more precise focusing.

Sample Protection
Z-axis lock and Z-axis escape/return function for safe, easy sample changes.

Imaging Software for High‑quality Image Acquisition, Processing and Analysis

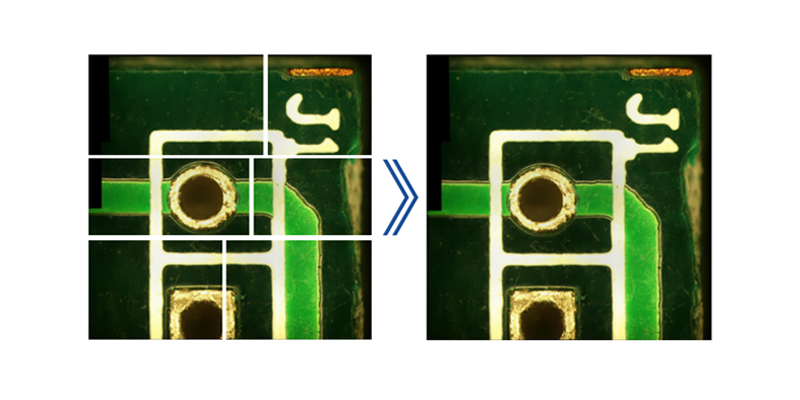

Image stitching

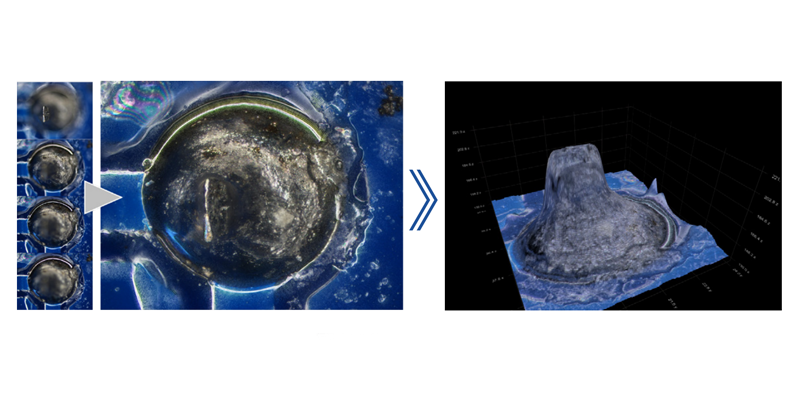

Depth-of-field fusion / 3D reconstruction

Meets All Inspection Needs

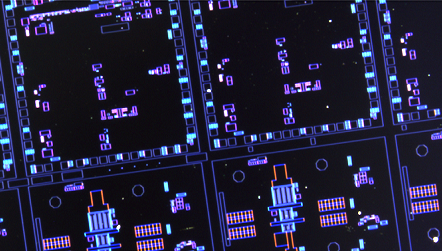

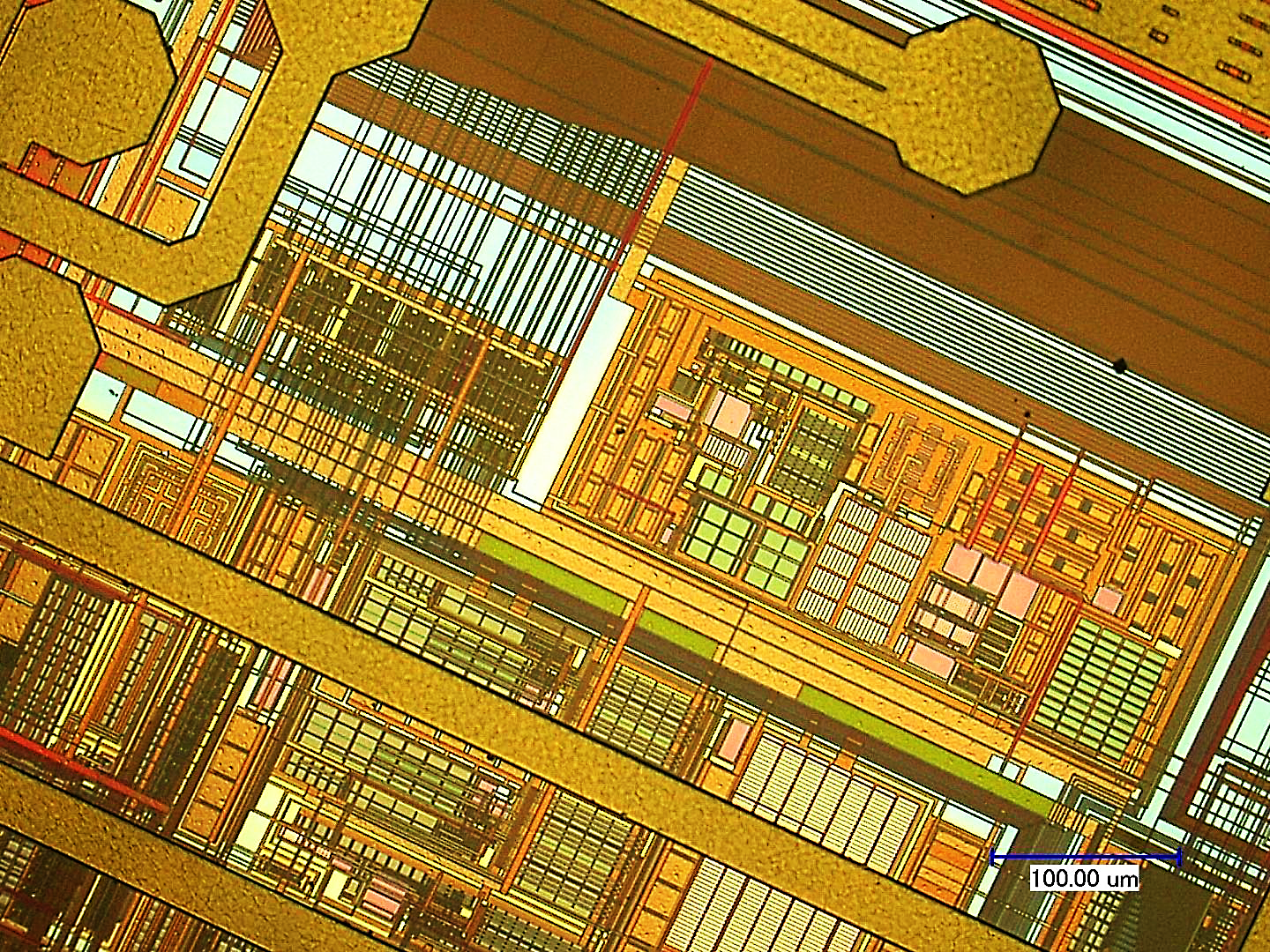

Köhler illumination delivers bright, uniform viewing. NIS infinity-corrected system plus high-NA, long-WD objectives enable Brightfield, Darkfield, Polarization and DIC — all at sub-micron quality. For semiconductor wafer processing, IC packaging, IC assembly/testing and high-end imaging.

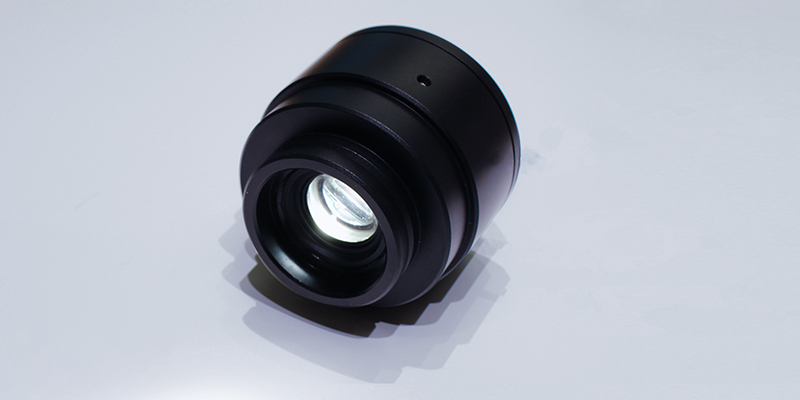

True Color Imaging

Constant color temperature LED; true color at all brightness levels. Long life, low power, easy maintenance.

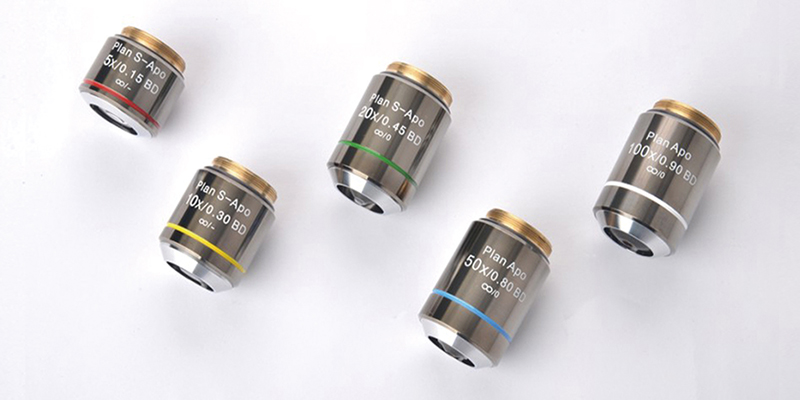

Long-WD, High-NA Objectives

Dedicated long-WD objectives. High-NA semi-apochromatic and apochromatic objectives for accurate industrial-sample color.

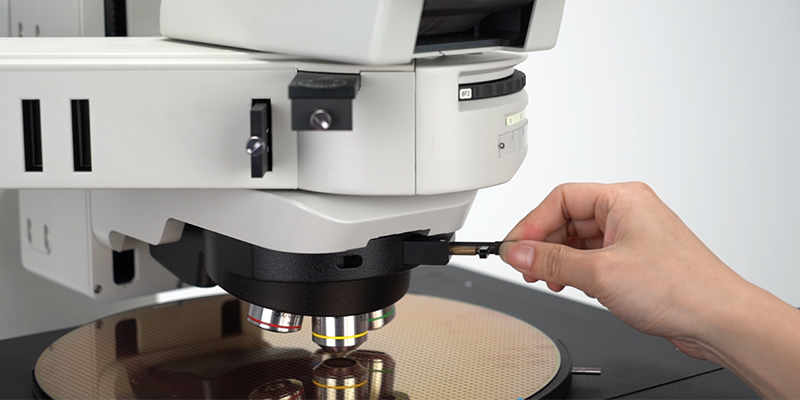

Multiple Observation Modes

Modular combination enables Brightfield, Darkfield, Polarization, DIC.

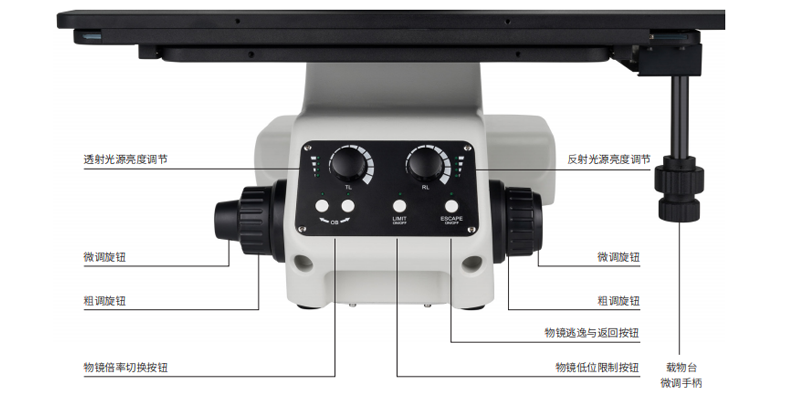

Operator-Proximal Motorized Controls

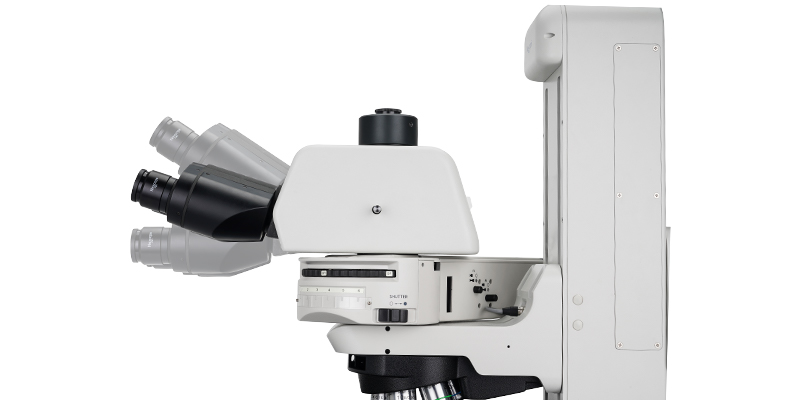

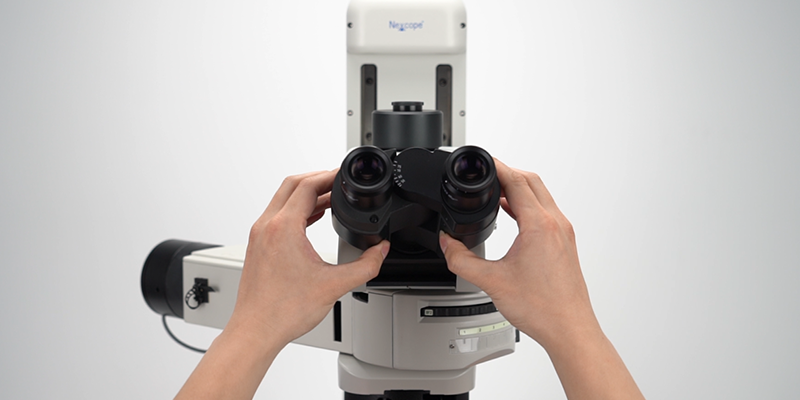

Frequently used controls positioned near the operator — reduces fatigue and dust from large movements. Erect-image tube with adjustable tilt and eyeline height for fast, convenient operation.
