NE300 Upright Microscope

Featuring a compact, rugged body and reliable clear optics, the NE300 fits well for hospital laboratories, primary‑care facilities and medical‑teaching environments with limited bench space for long‑hour operation. It delivers accurate imaging for morphological observation of blood, urine, body‑fluid and other routine samples. Simple, intuitive controls suit medical students and junior technicians. A steady, efficient solution for both medical‑teaching demonstrations and daily basic clinical tests.

Overview

Compact Laboratory Biological Microscope

For daily routines in medical‑related laboratories, you require a microscope like the NE300 — compact, durable, accurate and reliable. Inspection and research tasks demand long‑hour operations on workbenches with limited space. Furthermore, this optical microscope features simple, user‑friendly operation optimized for beginners, helping laboratory staff work with greater efficiency.

Compact & Durable Digital Microscope

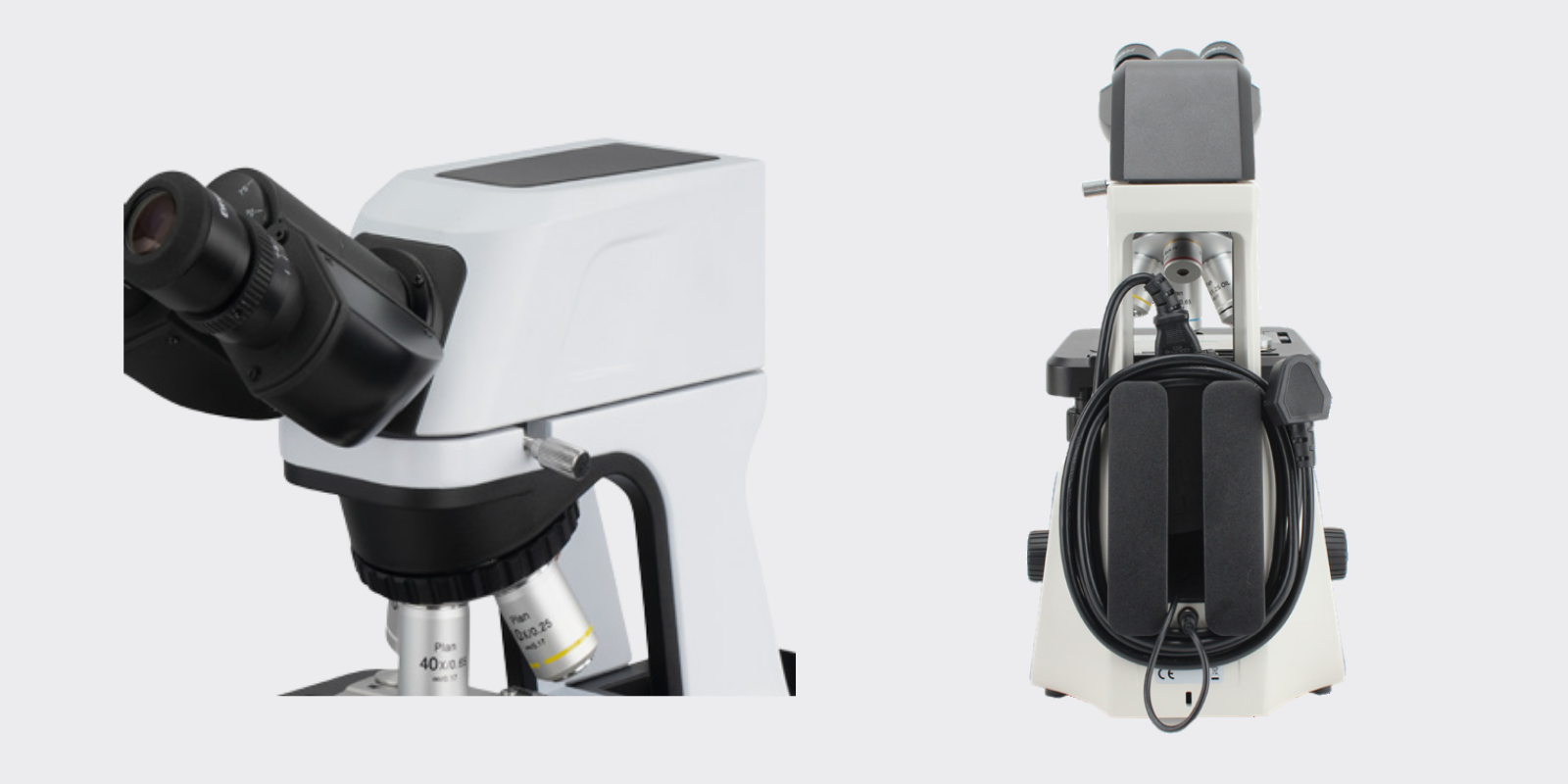

An integrated digital head is available as an option. With the same footprint as a standard binocular head, it connects the microscope to the network for image display on monitors, PCs or mobile devices, saving time for interactive communication. Without protruding camera ports, the microscope maintains a neat appearance and simplifies routine maintenance.

It is fitted with a dedicated carrying handle, featuring light weight, excellent stability and robust construction. A cable‑management hub on the rear panel neatly stores excess power cords to prevent tripping risks during transportation. Its compact size facilitates easy storage.

Accuracy & Reliability for Experiment, Inspection and Research

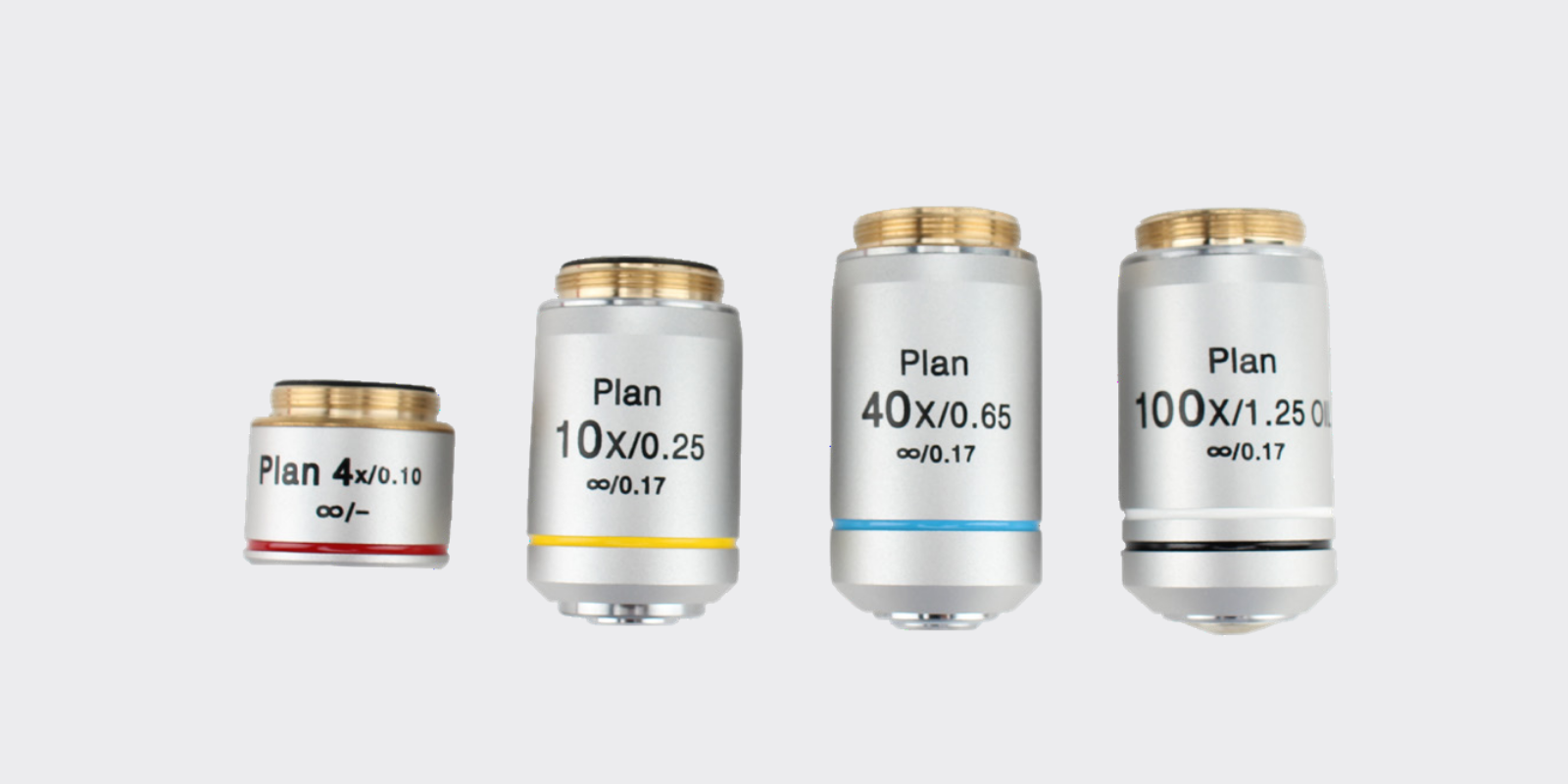

NIS‑series Plan‑Achromatic objectives deliver superior chromatic aberration correction and flat‑field performance. Featuring high numerical aperture (NA) and long working distance, they produce sharp images for broad‑range applications. True‑to‑life color reproduction enables precise observation of specimens.

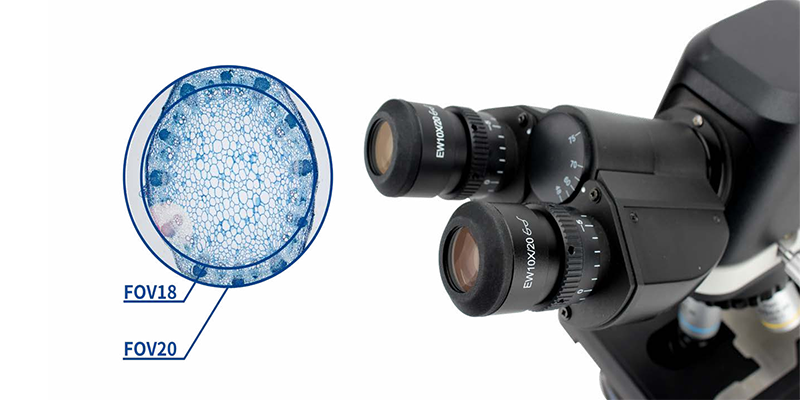

20 mm Wide Field‑of‑View

Equipped with 20 mm field‑of‑view tube and eyepieces, it enables faster specimen screening and improves working efficiency.

Intuitive & Optimized Human‑machine Interaction

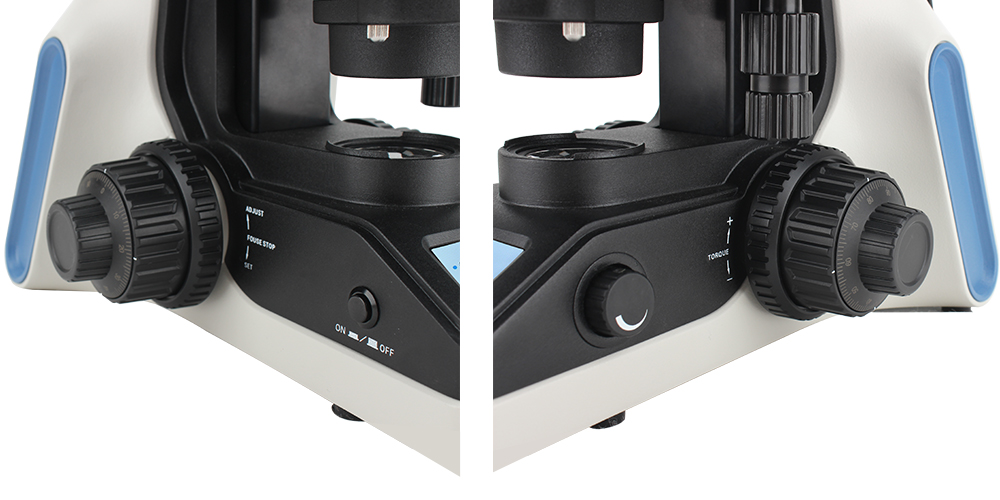

Low‑position focus knobs allow users to rest hands and forearms on the desktop during observation. Adjustable torque enhances operating comfort. It features an upper‑limit lock function. Once the stage upper limit is locked, accidental collision between objectives and glass slides is avoided to protect specimens and objectives from damage.

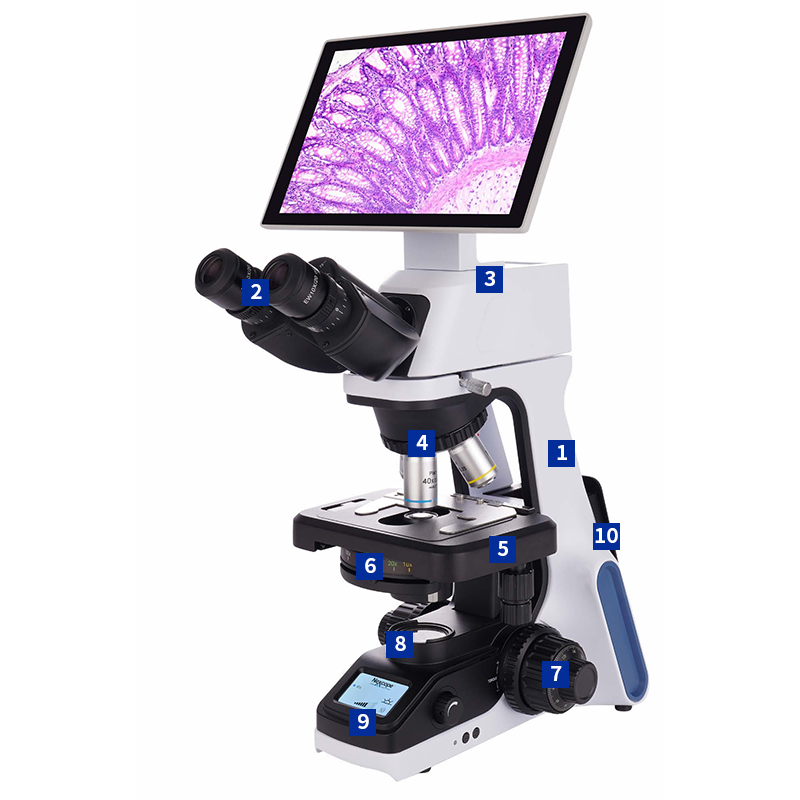

Accurate & Reliable・Intuitive Operation

1、NE300 Microscope

Microscope Status Display

2、Eyepieces

10X/20 Plan Eyepieces

3、Observation Head

Hinged Binocular Head

Hinged Trinocular Head

Integrated Digital Observation Head

Modular Digital Observation Head (with wireless display)

4、Objective Nosepiece

4‑position Objective Nosepiece

5、Stage

Timing‑belt driven stage, no protrusions on left and right sides

6、Condenser

Insert‑in Condenser NA1.25, adjustable aperture

7、Right‑hand Coarse‑Fine Focus

Coaxial Coarse‑Fine Focus

8、Microscope Status Display

Read microscope status with a downward glance, including objective magnification, light intensity, color temperature, light source and other parameters

9、Left‑hand Coarse‑Fine Focus

Standard‑equipped stage height limit device for left‑hand operation

10、Cable Management Unit

Cable‑management hub on rear panel
