Dental Surgical Microscopy Solution

Delivering premium‑quality optics, the dental surgical microscope reveals fine anatomical details. Its ergonomic design, well‑proportioned over‑arm reach and smooth positioning provide great flexibility, helping operators maintain an upright posture for comfortable long‑hour work. The full‑HD camera captures static and live footage of surgical procedures. Recorded data can be saved into patient files for comprehensive documentation.

Overview

Surgical Microscope Components

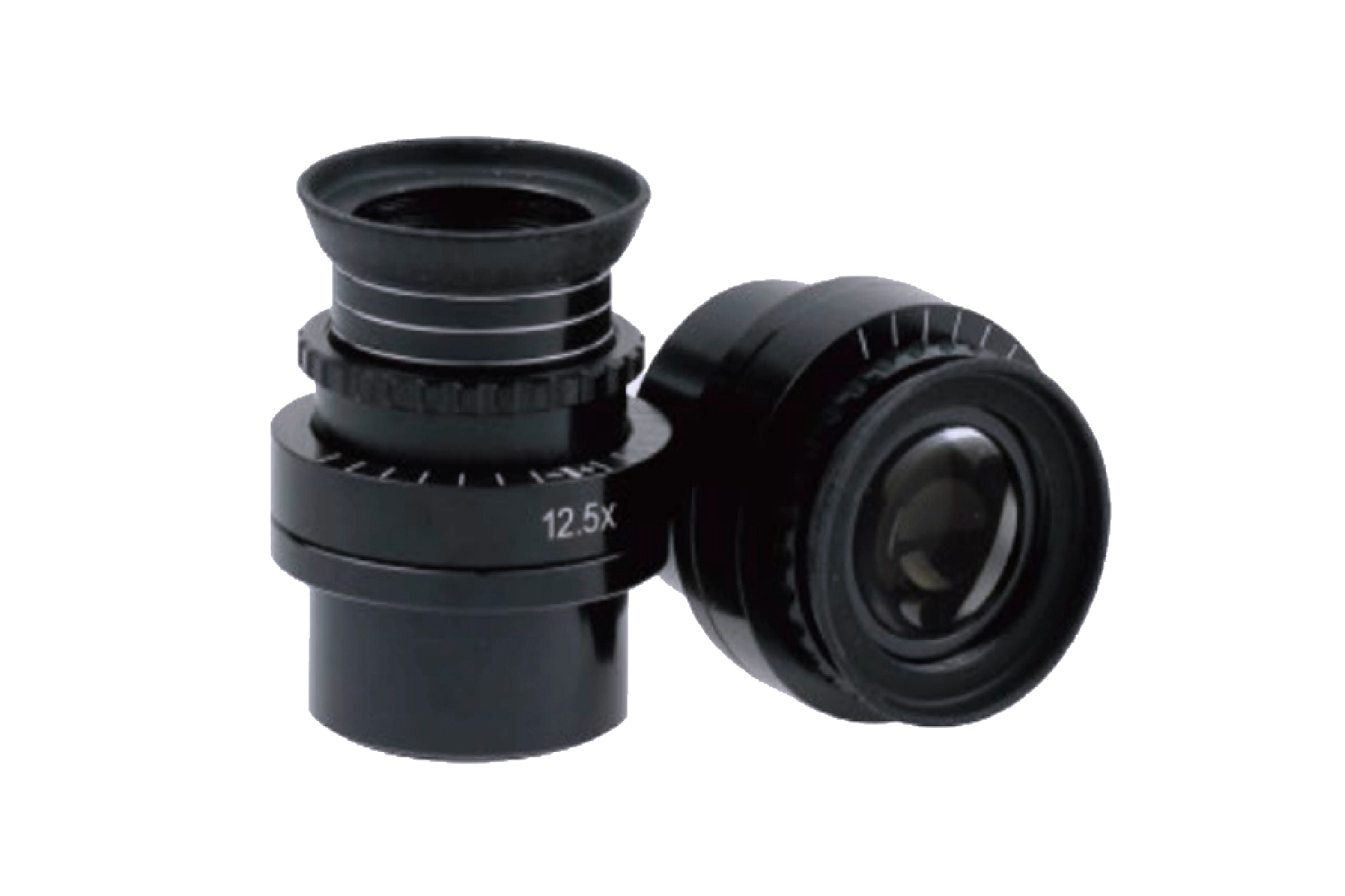

Eyepieces

Diopter‑adjustable, suitable for operators wearing glasses. The dedicated 12.5X eyepieces for surgical microscopes deliver a zoom range of 1.7×‑17.5×. Featuring a large field of view, they reveal abundant imaging details.

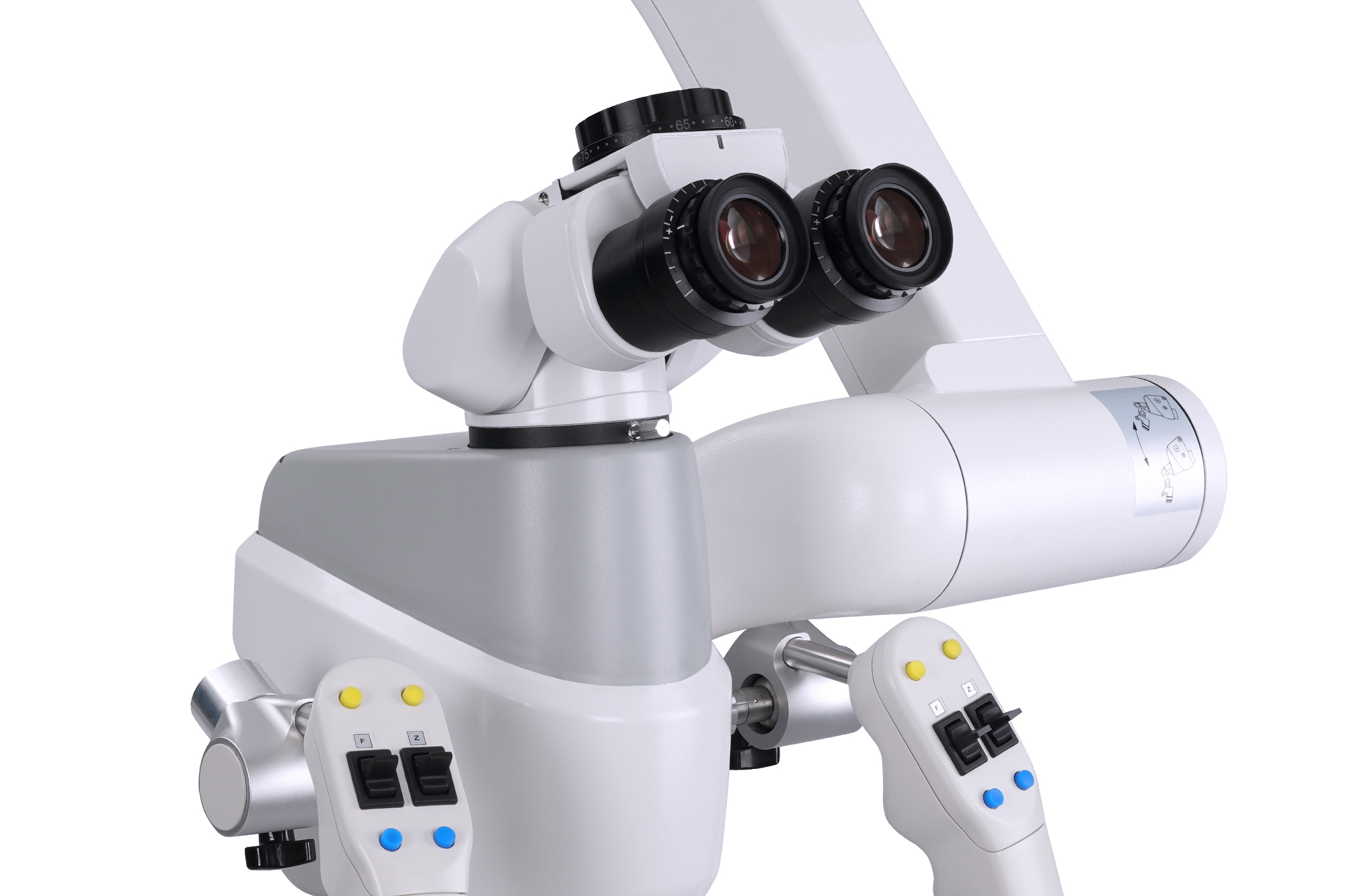

Observation Head

The tilt‑adjustable observation head enables convenient adjustment of interpupillary distance and eye‑point height without repositioning the microscope, allowing diagnosis to be performed in a comfortable sitting posture.

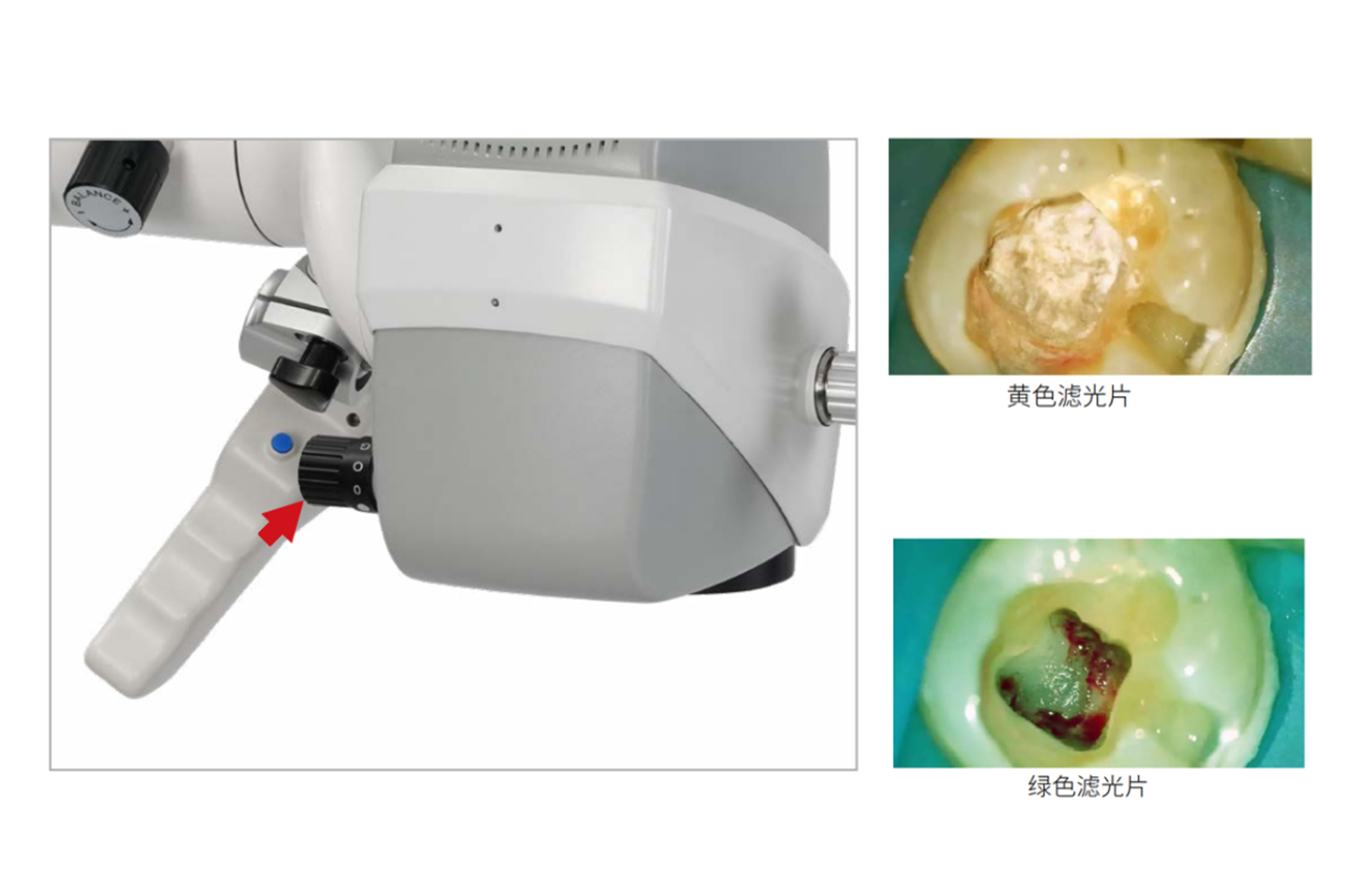

Filters

Green filters, orange filters, or pinhole apertures of various sizes improve detail visibility and reduce visual fatigue.

Green filter: Enhances contrast for well‑vascularized tissues.

Orange filter: Prevents premature hardening of composite restoratives.

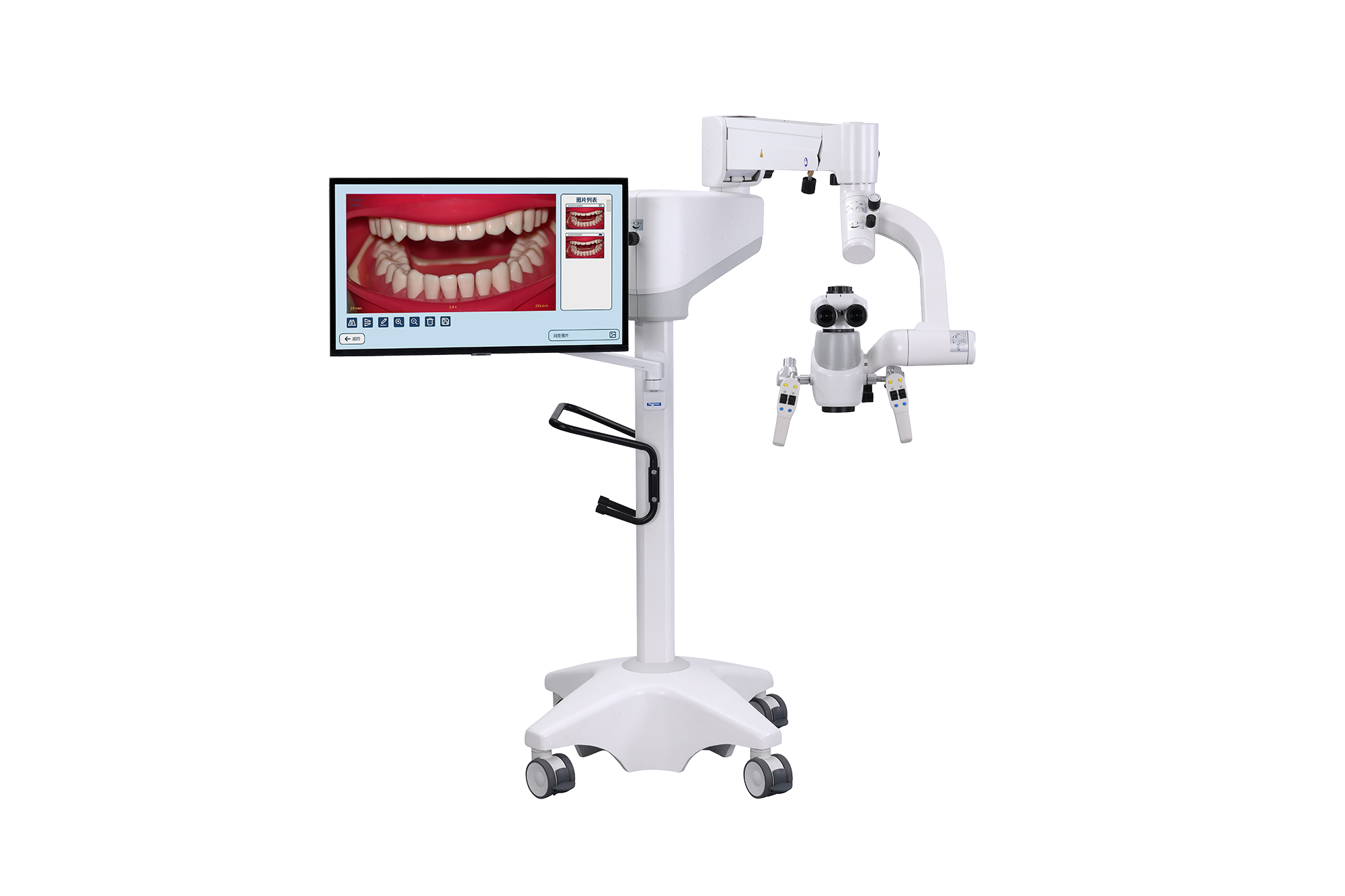

Dental Surgical Microscope

A precision optical device for dental applications. It delivers high‑magnification, crisp field‑of‑view with outstanding ergonomic benefits, featuring optimal overhead reach and smooth positioning. Full‑HD camera captures static and live footage to document every surgical step, with real‑time data transmission for easy archiving. It enables clinicians to address tiny lesions with higher precision while minimizing damage to healthy tissues, greatly improving treatment success rates and patient satisfaction. It marks a key milestone toward precision and minimally‑invasive dentistry.

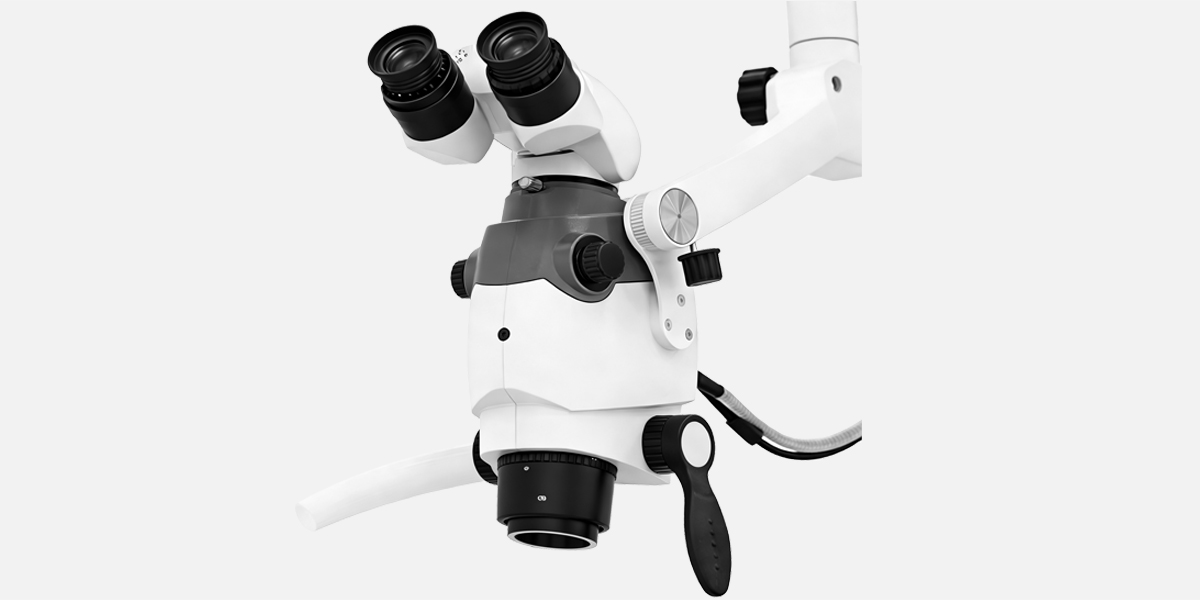

Zoom Body

Dental: Manual Drum Zoom, Continuous Zoom Body

Dental: Motor‑driven Continuous Zoom Body

Ophthalmology: Motor‑driven Continuous Zoom Body

Neurosurgery: Motor‑driven Continuous Zoom Body

The zoom body is the critical optical component that enables continuous zooming for surgical microscopes. Custom development and supporting services are available. Precise movement of internal lens groups provides both stepped and stepless continuous magnification adjustment, representing the core technology for sharp, stable surgical viewing.

Superior Optical System: The zoom body adopts a full‑apochromatic design. Excellent aberration correction delivers a fine balance between high resolution and large depth of field.

Wide Zoom Range: Various zoom bodies including continuous‑zoom and stepped‑zoom types offer a 0.4‑2.4× zoom range to meet magnification requirements for diverse projects.

High‑precision Alignment: Parfocal performance and excellent centering consistency are maintained during magnification switching between low and high power. No additional focus or position adjustment is required, ensuring convenient and reliable operation.
