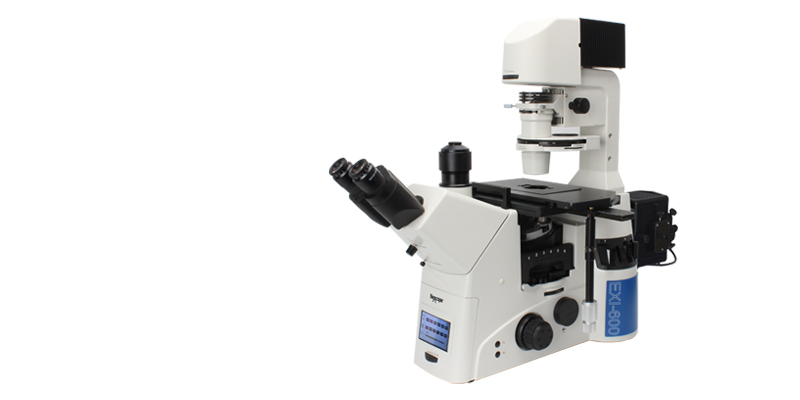

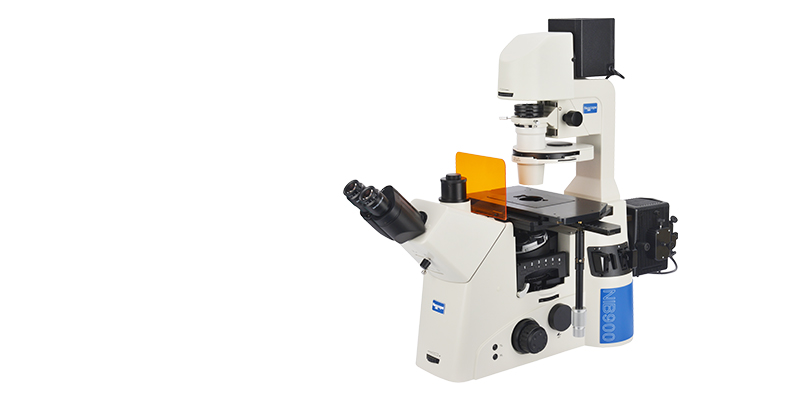

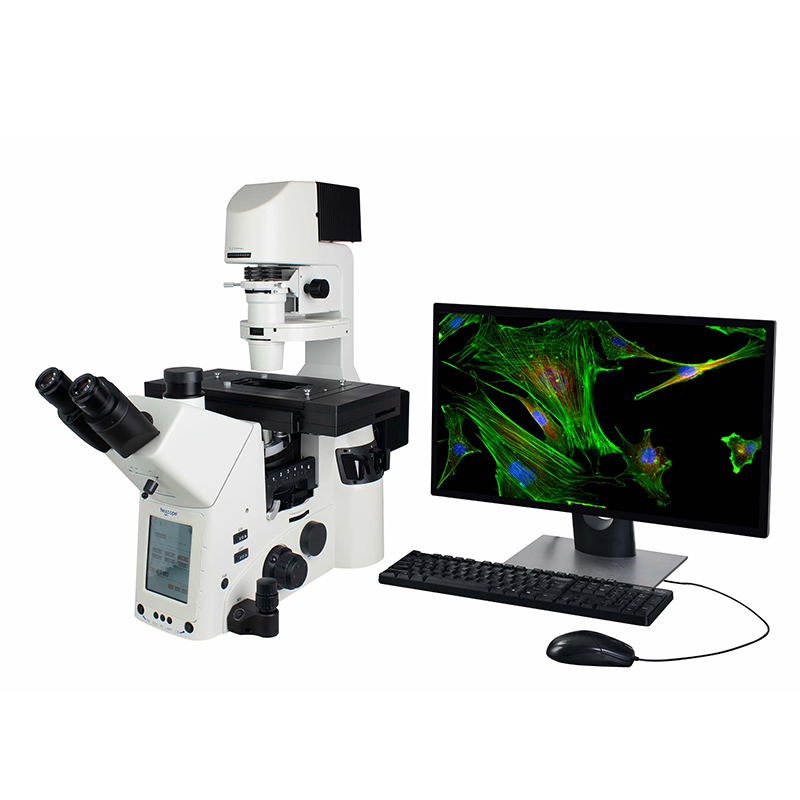

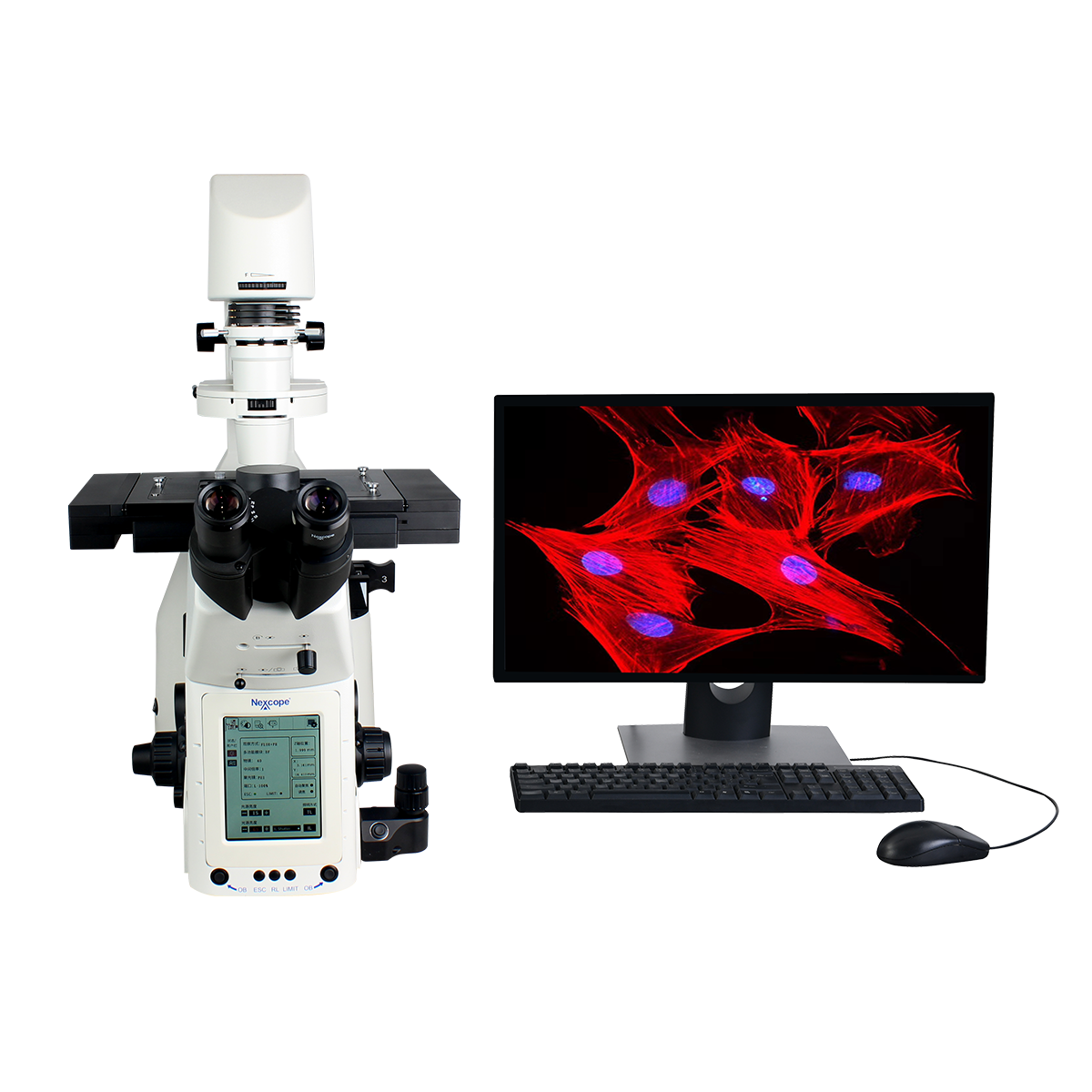

NIB900‑Series Research‑Grade Inverted Microscope

The NIB900 supports Brightfield, Phase‑Contrast, Polarization, DIC, Fluorescence and other observation modes. It is upgradeable for cutting‑edge life‑science applications, including confocal and super‑resolution imaging. Engineered with user‑friendly ergonomics, it significantly reduces physical fatigue caused by long‑time observation. High‑speed motorized controls simplify and visualize complex workflows for easier, more‑intuitive operation.

Overview

NIB960 Fully‑Motorized Research‑Grade Inverted Microscope

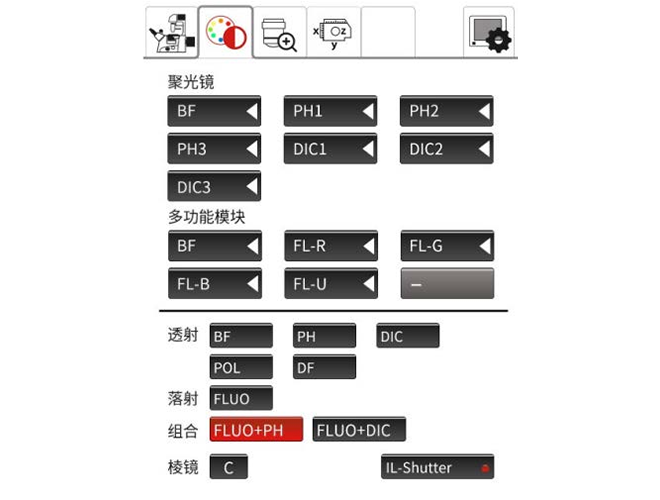

Front‑mounted microscope operation display enables full motorized control.

NIB910 Manual Research‑Grade Inverted Microscope

Supports bright‑field, phase‑contrast, fluorescence and DIC observation.

NIB920 Encoded Research‑Grade Inverted Microscope

Features an extra‑large display for convenient dark‑room operation.

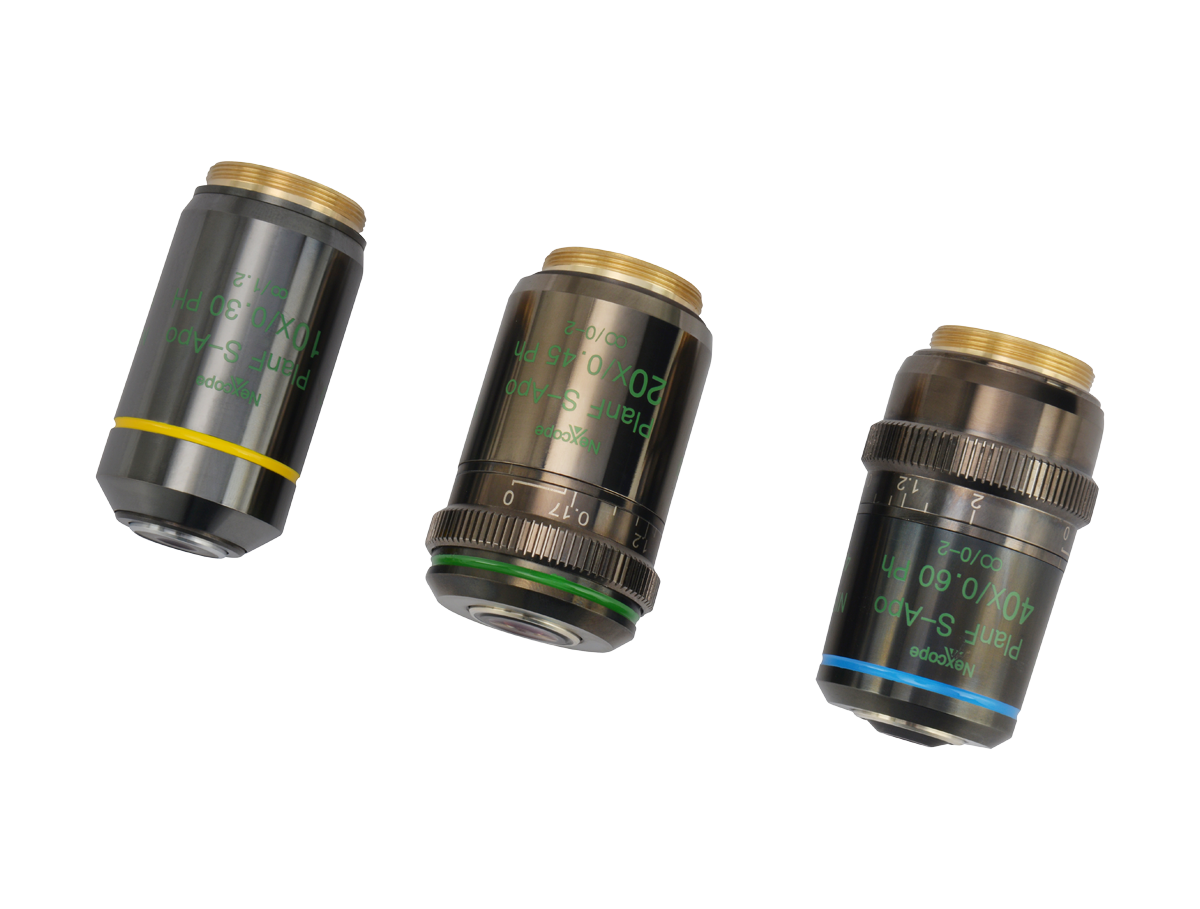

N‑iPLFN PH Plan‑Semi‑Apochromatic Phase‑Contrast Objective

Adopting multi‑layer coating technology, this semi‑apochromatic objective compensates for spherical aberration and chromatic aberration ranging from ultraviolet to near‑infrared. The 20× and 40× semi‑apochromatic objectives are built‑in with correction collars to correct cover‑glass thickness‑induced cover‑plate deviation.

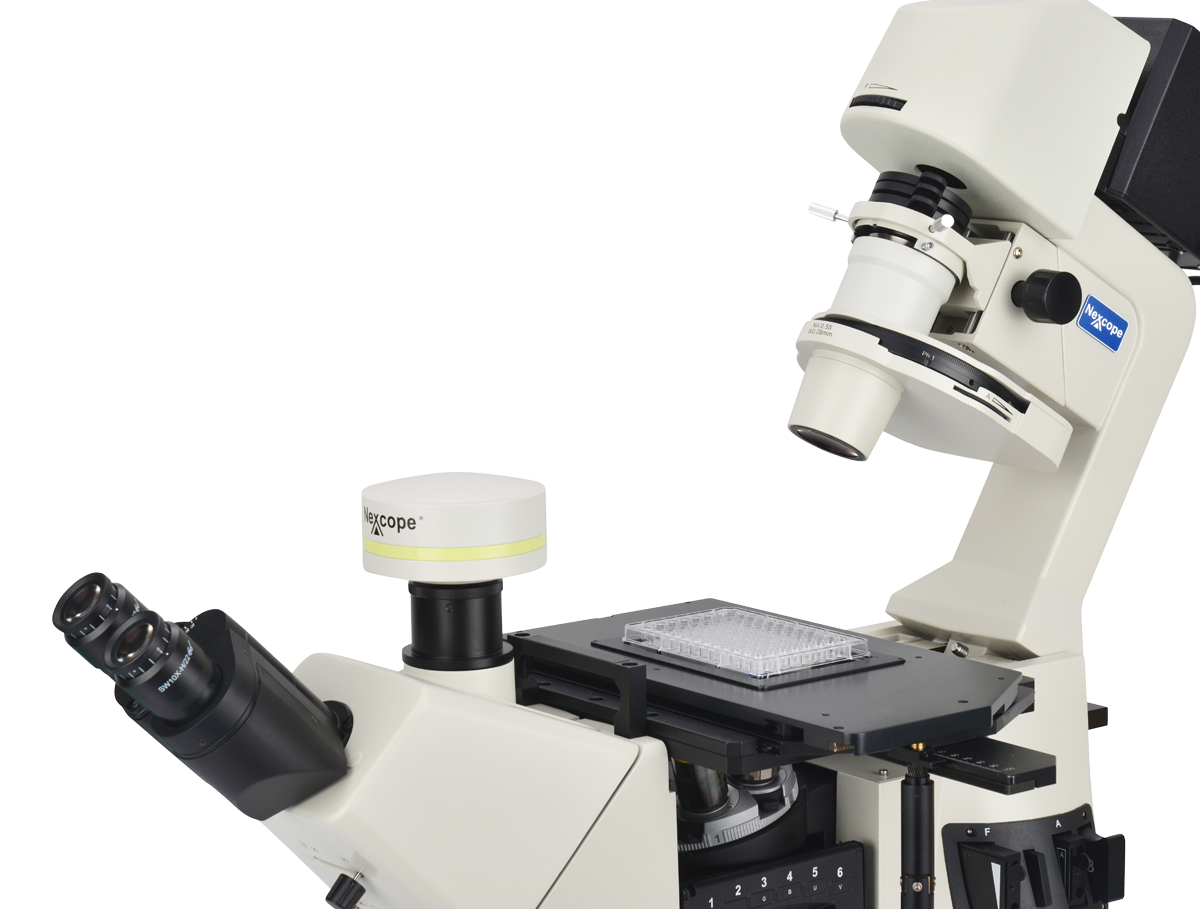

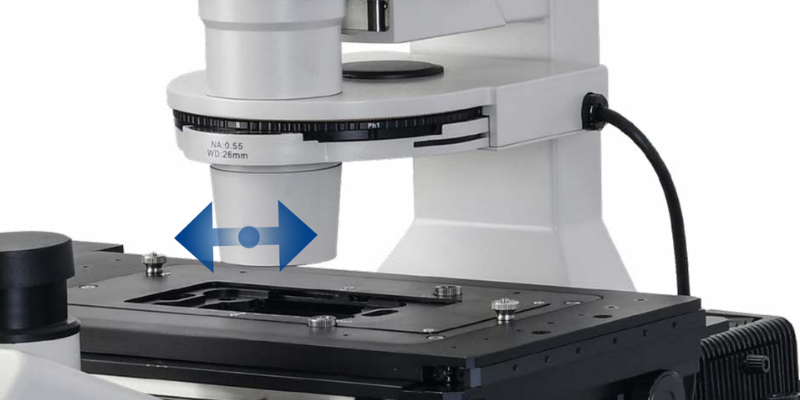

Tiltable Transmitted‑Illumination Column

Delivers ample working space for convenient sample replacement.

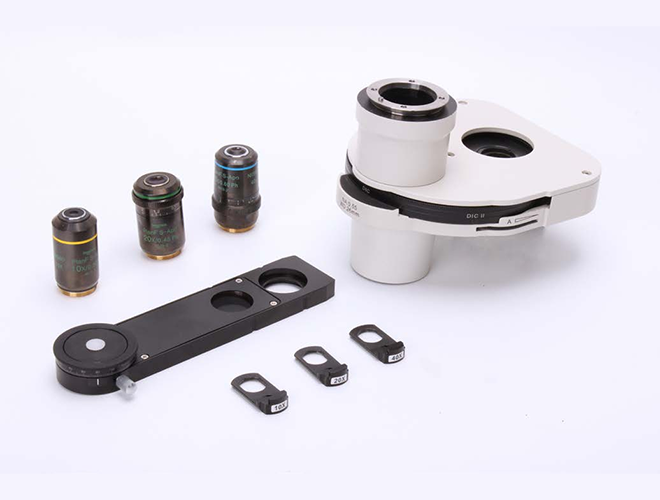

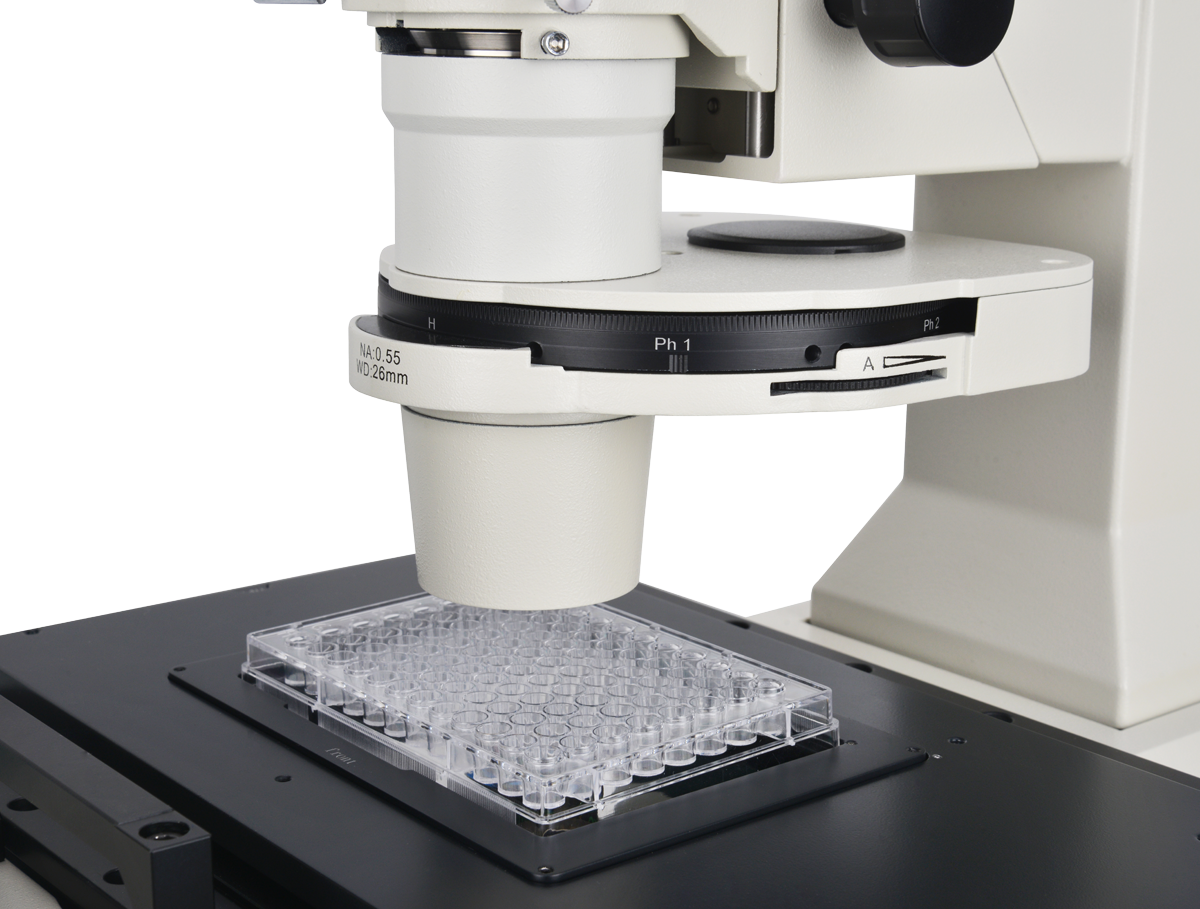

System Condenser Meets Diverse Experimental Requirements

It supports multiple observation modes such as bright‑field, phase‑contrast and DIC, maximizing configuration options for your experiments.

Multi‑port Optical Output

An optical‑path selector turret is fitted on the left‑hand side of the microscope, facilitating distribution of optical images to different ports and expanding capabilities for diverse optical‑imaging applications.

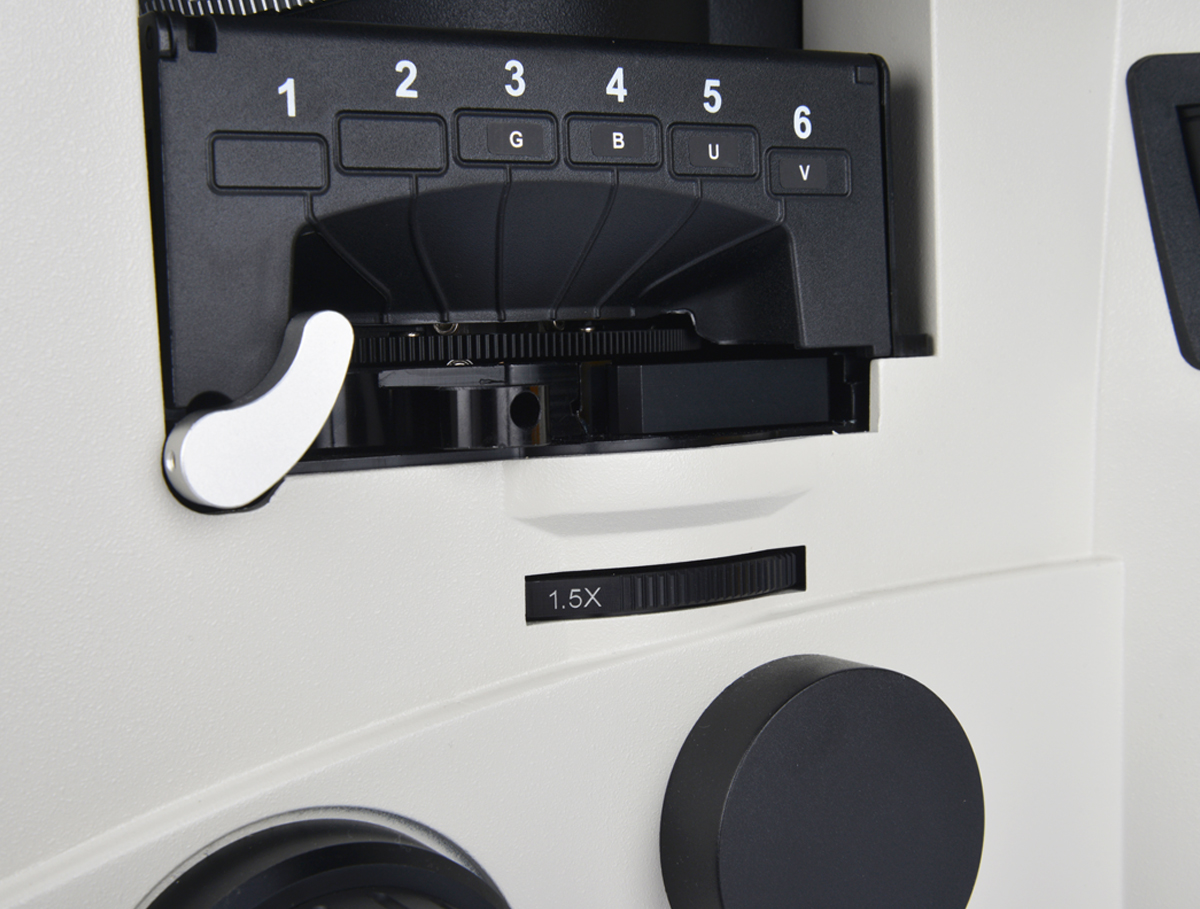

Switchable Intermediate Magnification

Smooth turret operation enables fast switching between 1× and 1.5× intermediate magnification.

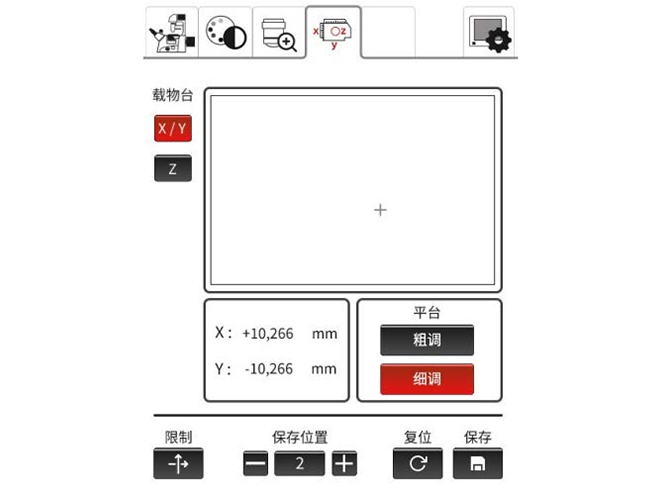

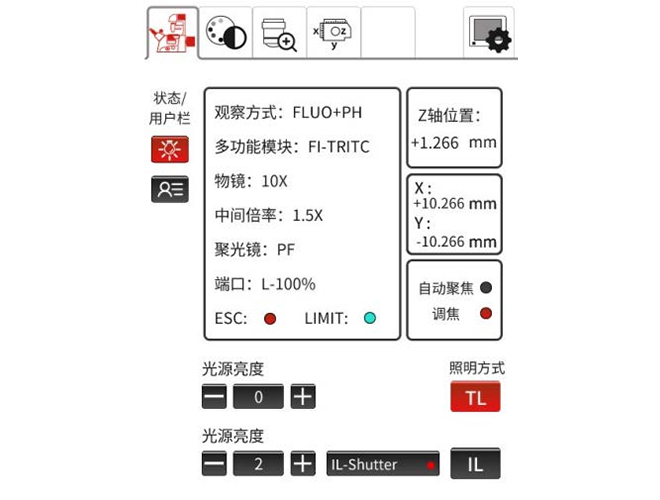

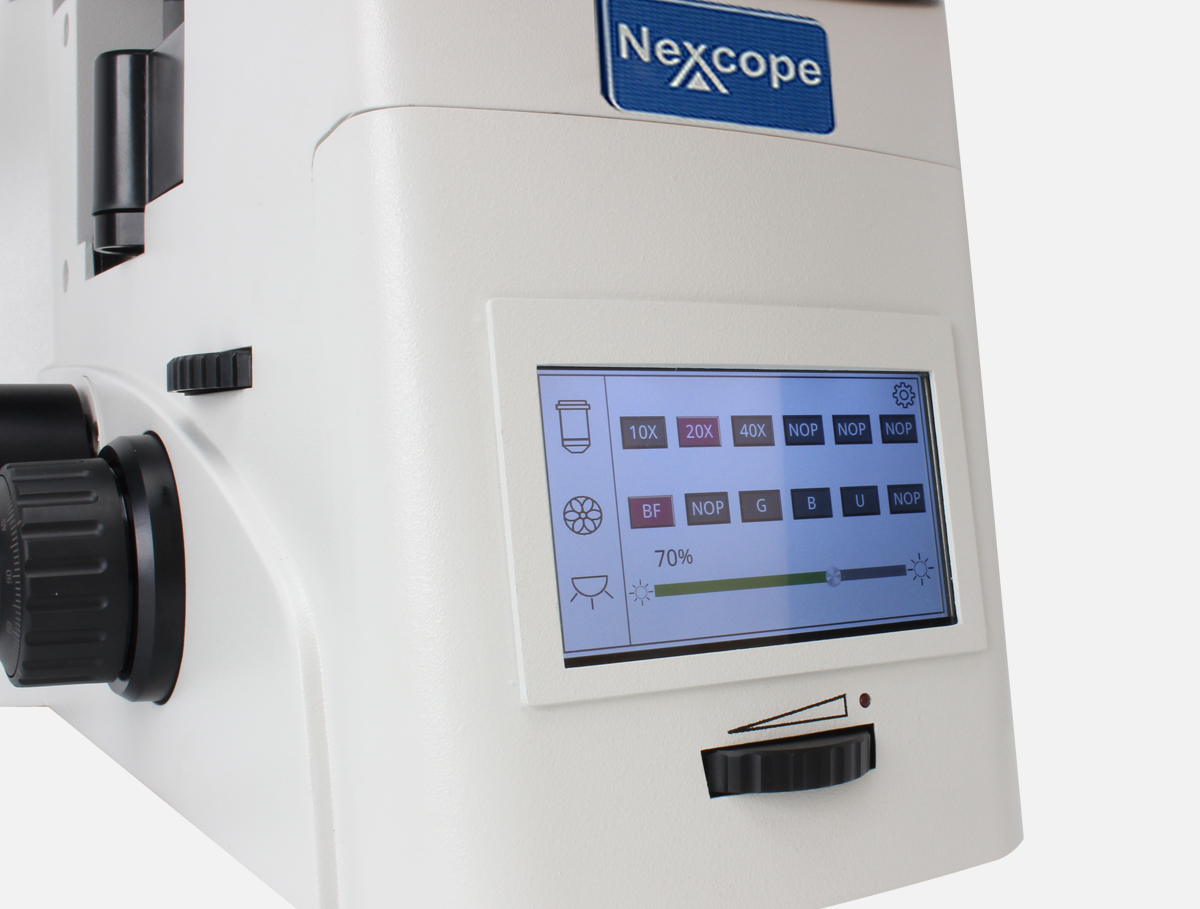

Microscope Status Display Screen

For convenient dark‑room operation, the NIB920 features a 4.3‑inch touch‑screen display on the front panel.

Multiple Motorized‑Component Combinations for Fast and Precise Operation

The microscope is configurable with diverse motorized components, such as objective switching, focusing, condenser turret switching and fluorescence‑module switching. Fast and straightforward operation of this research‑grade inverted microscope not only boosts working efficiency, but also shortens cell exposure time to reduce phototoxicity and deliver more accurate, valuable experimental results.

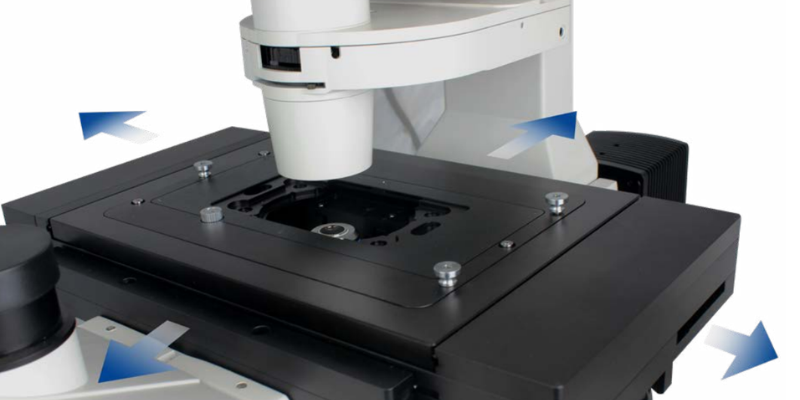

XY‑Axis Motorized Stage

Long‑travel and high‑precision design enables fast positioning and suits multi‑point observation.

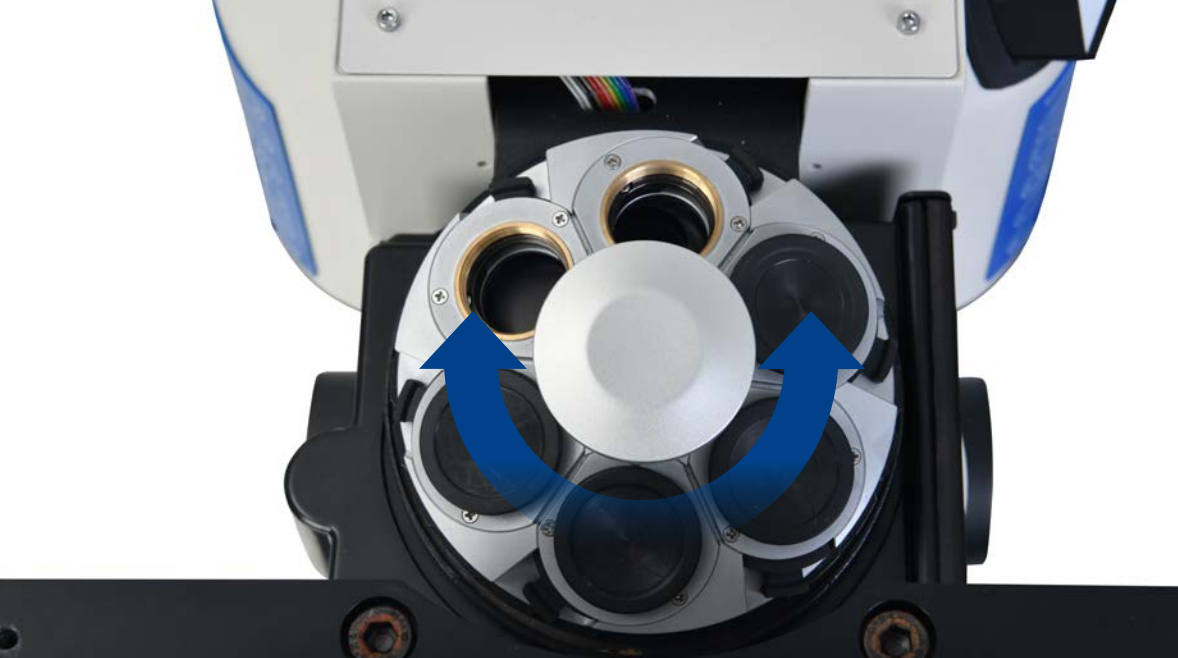

Motorized Objective Nosepiece

Enables free switching among six objectives.

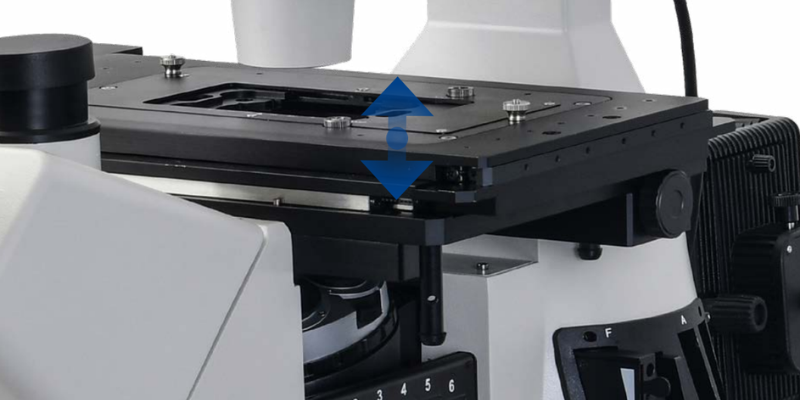

Motorized Z‑Axis Focusing

Delivers fast and precise Z‑axis control.

Motorized Condenser Turret

Enables motorized switching of condenser modules.

Motorized Fluorescence‑Module Turret

Supports free switching among six‑position fluorescence modules.

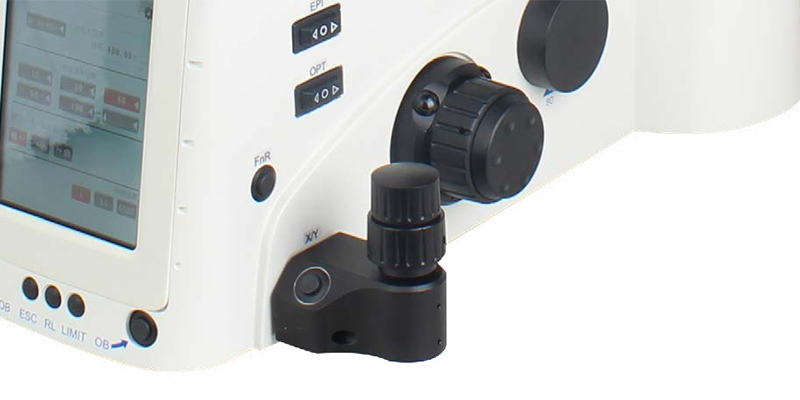

Joystick Module

Provides flexible positioning for the motorized stage.

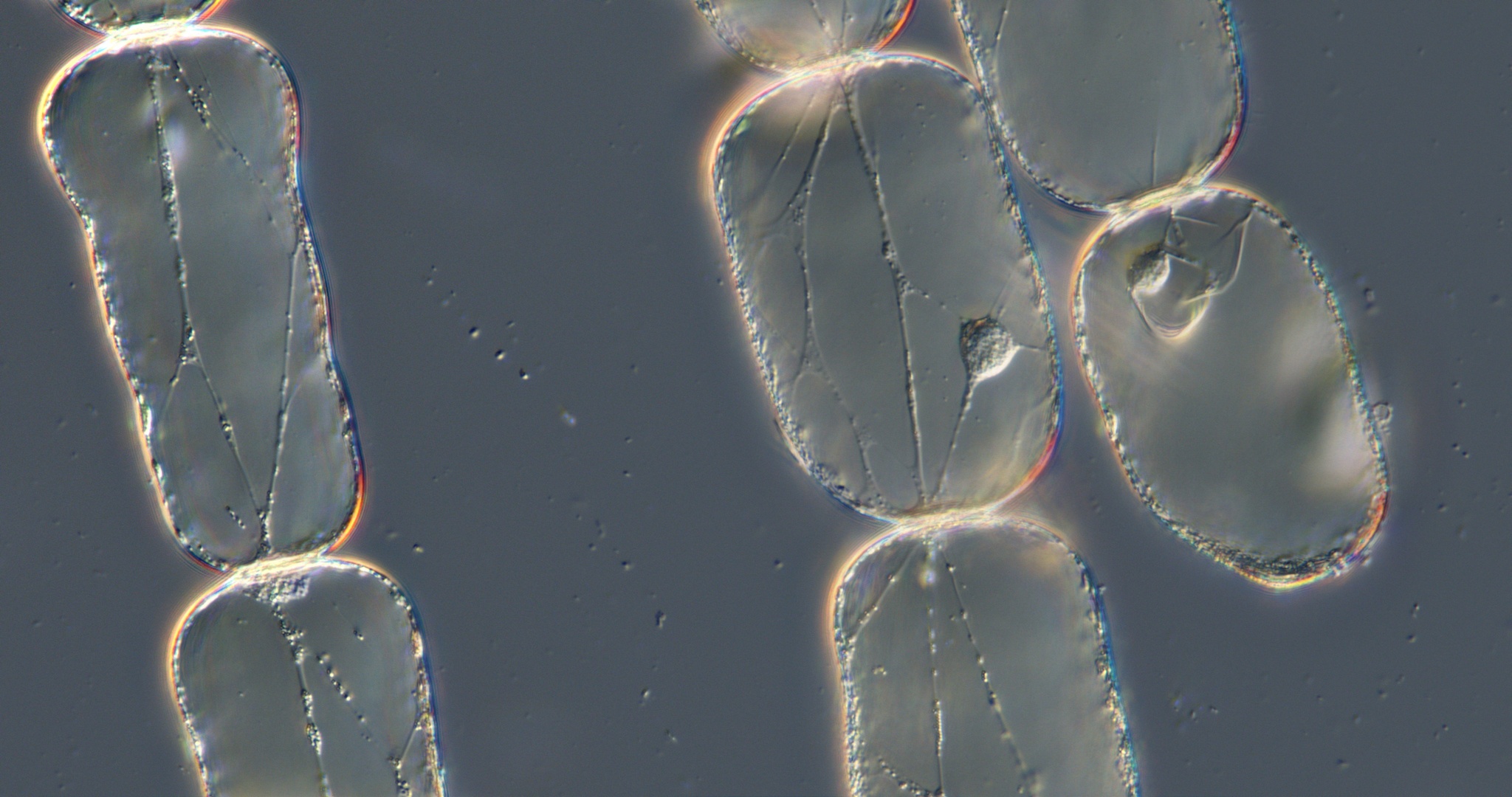

Differential Interference Contrast (DIC)

Phase‑Contrast Observation

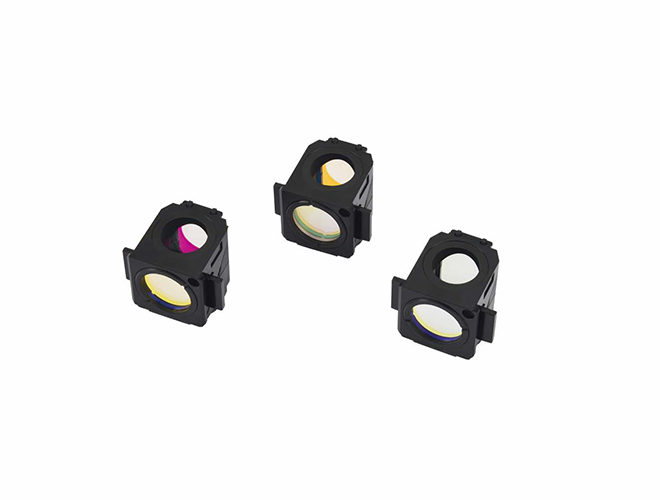

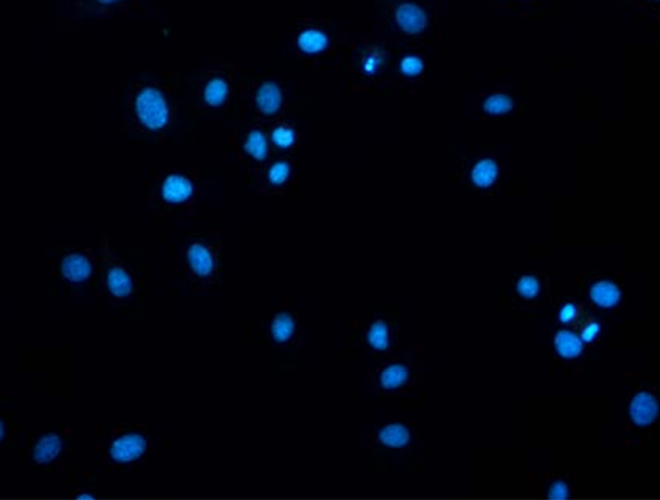

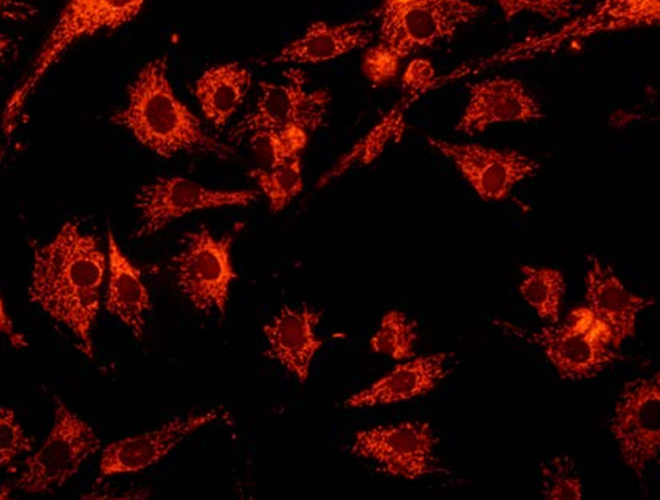

Fluorescence Filter‑Cube Assembly

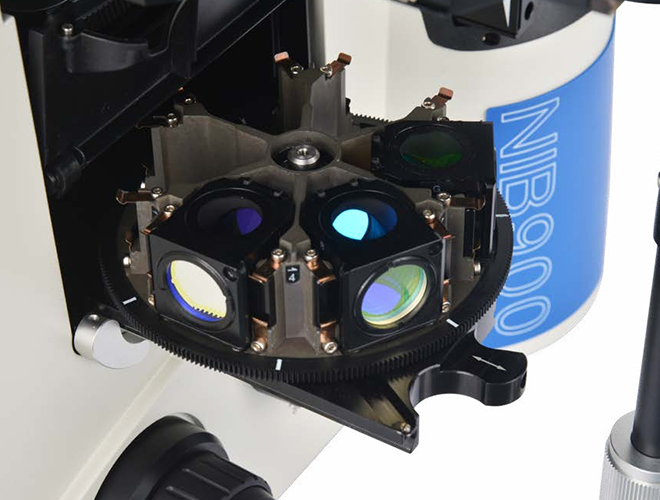

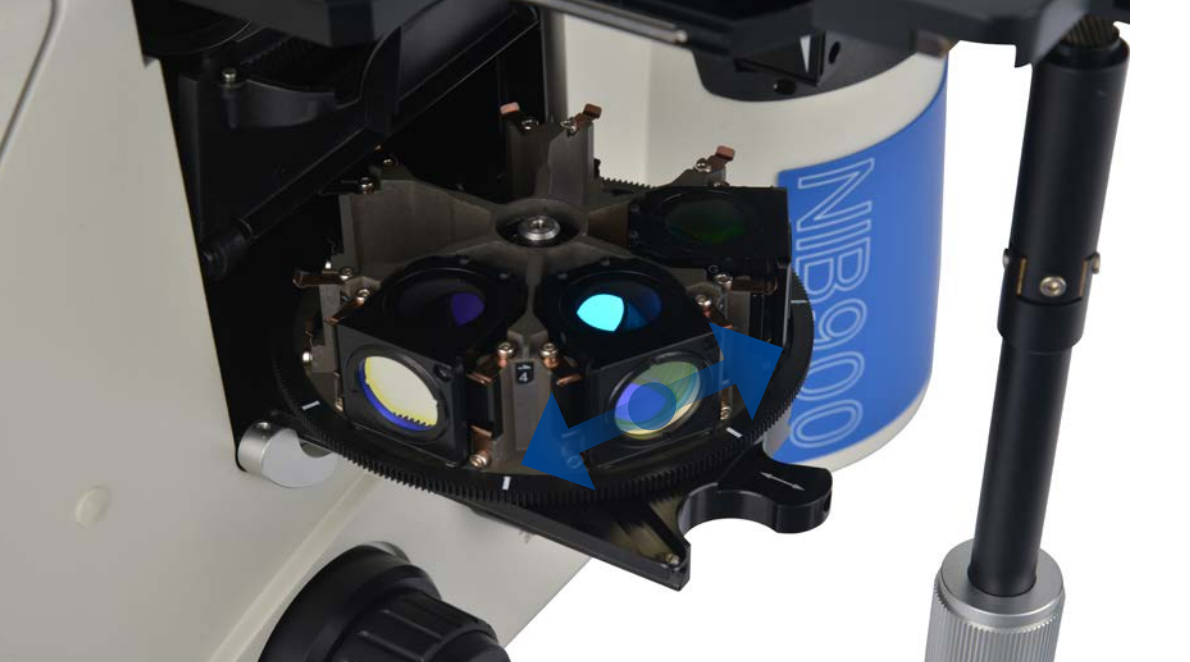

Turret‑Style Fluorescence Excitation Modules: Easier and More Flexible

Featuring a versatile six‑position turret structure, the modules can be easily detached from the main unit for convenient replacement of various fluorescence excitation blocks.

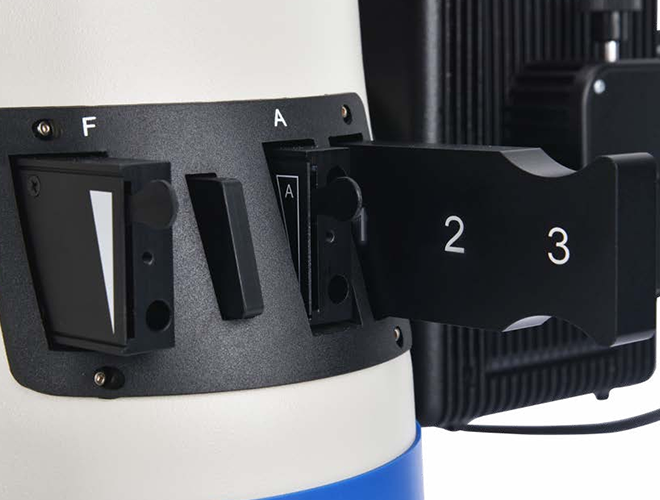

Fast, Straightforward Operation: NIB900 Diaphragm Sliders

Three types of diaphragm sliders — reflected‑light field diaphragm, aperture diaphragm and filter insert — demonstrate the NIB900’s high versatility for live‑cell research. When the aperture diaphragm and fluorescence filter insert are used together, fluorescence intensity can be adjusted to the optimal level according to the selected fluorescence module and objective.
